Parameter | Description |
Total volume | 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 200KL etc. |
Working volume | 30%~70% |
Tank | Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5 |
Stirring system | Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm |
Sterilization | Sterilize in place(SIP), auto control by program |
Clean | Clean in place (CIP) by spray ball |
Gas control | Control by rotor meter, air flow 1 vvm |
Feeding | Automatically feeding by peristaltic pump |
Anti-foam control | Automatically add antifoam by peristaltic pump |
Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
Sampling | Sampling valve, can sterilization separately, manual |
Harvest | Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
Lid lift system | 30L-500L have lid lift system, 700-1000L have human hole. |
Pressure | Auto control, BD Germany pressure transmitter |
Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate, CSA certificate, Batch culture, Seed transfer, etc. |

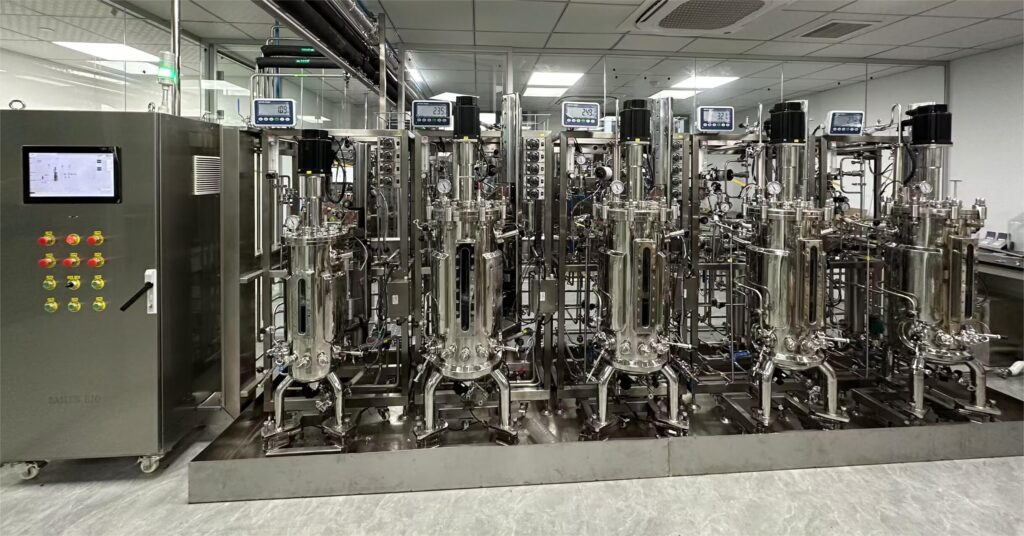

BLBIO-50SJA-5 is a laboratory fermentation equipment, compact, easy to operate, powerful, fermentation can meet a variety of purposes, such as batch, fed-batch, or animal cell culture. Color touch screen display of all measured values and control parameters, which greatly facilitates the user’s actions. Per pot in front of the tank next to the control box installed four peristaltic pump, to the fermentor can be added acids, bases, defoamers, and the culture medium. Fermentation of various parameters such as, pH, DO, temperature and speed can be monitored by the controller, all the data and control parameters can be passed to the controller or computer. Compact structure, the various components can be integrated on the fermentation system. The upper driver using direct coupling mechanical stirring or lower driving indirectly coupled magnetic mechanical stirring manner, simple structure, stable operation.
