High Throughput Glass Micro Bioreactor
25 Years Experience Bioreactor/Fermenter Manufacturer
Your Reliable Chinese Micro Bioreactor Manufacturer: Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.

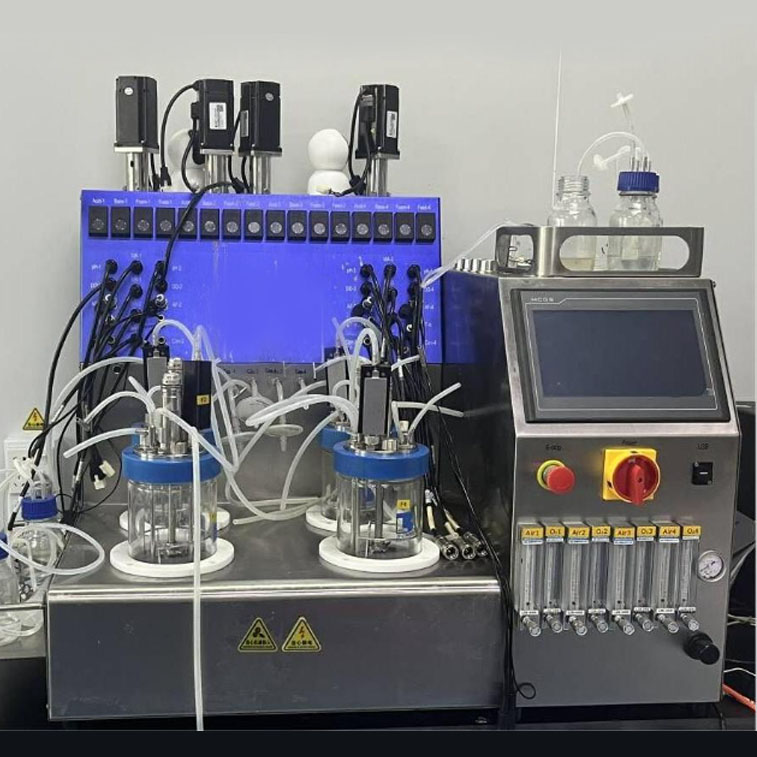

High-throughput Micro Bioreactor Waterless Temperature Control
High-throughput micro bioreactor is micro fermenter.It has semiconductor anhydrous temperature control and anhydrous condensers, multi channel, high-throughput, small footprint, lightweight, and a good helper for R&D process.
High-throughput micro bioreactor does not require a drop of water, energy-saving and environmentally friendly, suitable for the different laboratories’ requirements. For good parameter control, this model maximum total volume size is 2L.
Ferbio micro bioreactor Meet Various Production Needs

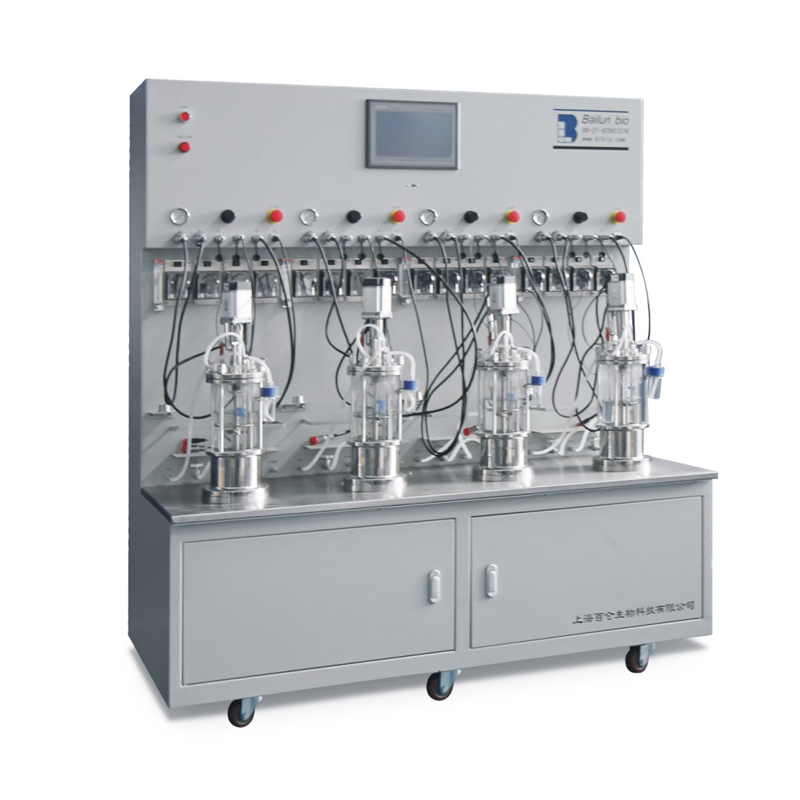

Ferbio single full glass vessel micro bioreactor, magnetic(GC) or mechanical(GJ) drive on the top, off-site sterilization, program auto control fermentation parameters, easy operation and clean, small and save place. Standard model control pH/DO/foam/temperature/agitation/gas. Control panel language EN/CN/RU.
Micro bioreactor meet various purposes of fermentation, such as batch, batch fed, and for bacterial, yeast, microorganism, animal cell culture, algae etc. culture.
Micro Bioreactor Can Be Customized
10 inch color touch screen of high-throughput micro bioreactor displays all measured values and control parameters, usually each bioreactor has 4 peristaltic pumps for acid, alkali, defoamer, medium. Automatic control pH/DO/temperature/agitation/antifoam. Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.High-throughput mini fermenter bioreactor accept customize and design.
High-throughput micro bioreactor have more optional: Remote control, Mass flow meter, gas O2/N2/CO2, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Glucose detection, Weight system, Live cell sensor(Biomass), Variable speed pump, Printing, 15” color touch screen, Siemens screen, program open setting etc..
Know More About High-throughput Micro Bioreactor
| Parameter | Description |
| Total volume | Maximum total volume size is 2L. |
| Working volume | 30%~70% |
| The ratio between diameter and height | 1:2.0~2.3 |
| Vessel specifications and quantity | Micro fermenter quipped with 4 glass vessel systems. Maximum total volume size is 2L. The material is high temperature sterilization borosilicate glass. The tank cover distributes the inoculation port, pH electrode port, DO electrode port, 4-way feed port, temperature electrode port, and sampling port. Each tank is equipped with 2 gears Rushton stirring paddle, 1 gear axial flow oblique blade paddle, annular gas distributor, and anhydrous temperature control exhaust gas condenser. |
| Innovative water-free temperature module | Micro fermenter can be used for 4 tanks at the same time. The innovative water-free temperature control module can independently control the temperature of each tank without external cooling water auxiliary equipment, reducing the water environment around the fermentation. Temperature control range: 10~45℃; accuracy: ±0.1℃. |
| Stirring control module | Mini bioreactor can control 4 tanks at the same time, equipped with servo drive motor, speed control range: 50-1000rpm. PID control can be set for manual, automatic or cascade control. |
| DO control module | 4 high temperature sterilization DO probes, DO display control range 0.0-150.0%, accuracy: ±1.0%. Dissolved oxygen can be controlled in forward or reverse cascade through parameters/behaviors such as stirring speed, air ventilation, and feeding. Three cascade modes of parallel, series and cross can be used to achieve more precise control; |
| pH control module | for 4 tanks at the same time. The acid/alkali pump can realize linkage control with the feed pump to maintain the balance of the reactor matrix concentration. 4 high temperature sterilization pH probes. The control range is 2.00-12.00±0.01; Precision feeding pump module: 16 units, 4 watson-marlow peristaltic pumps each. Each feed pump module must be operated with independent power supply, and can be freely split and combined (non-integrated) according to the different feeding processes of each tank. Precisely control the amount of feed, realize batch, feeding, continuous and perfusion culture mode ； |
| Gas distribution module | for 4 tanks. Equipped with a rotameter to manually control the air intake, range: 0~2L/min |
| Foam/Liquid Level Control: | Foam control is realized by the foam probe sensing the liquid level and automatically adding defoamer. |
| The system of high-throughput micro Bioreactoris modular in design (non-traditional integrated), which can be split and expanded freely. Each module can run independently without interfering with each other, ensuring good repeatability and parallelism, so as to achieve rapid and accurate development of process conditions exploration. The desktop (not floor-standing) compact design of the whole machine, the size does not exceed: 1.5m*0.8m*0.9m (length, width and height) to fit the tight laboratory space. | |
| The exhaust has a water-free condenser, no external cooling water is required | |
