Your Reliable Chinese Industrial Fermenter Manufacturer : Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.

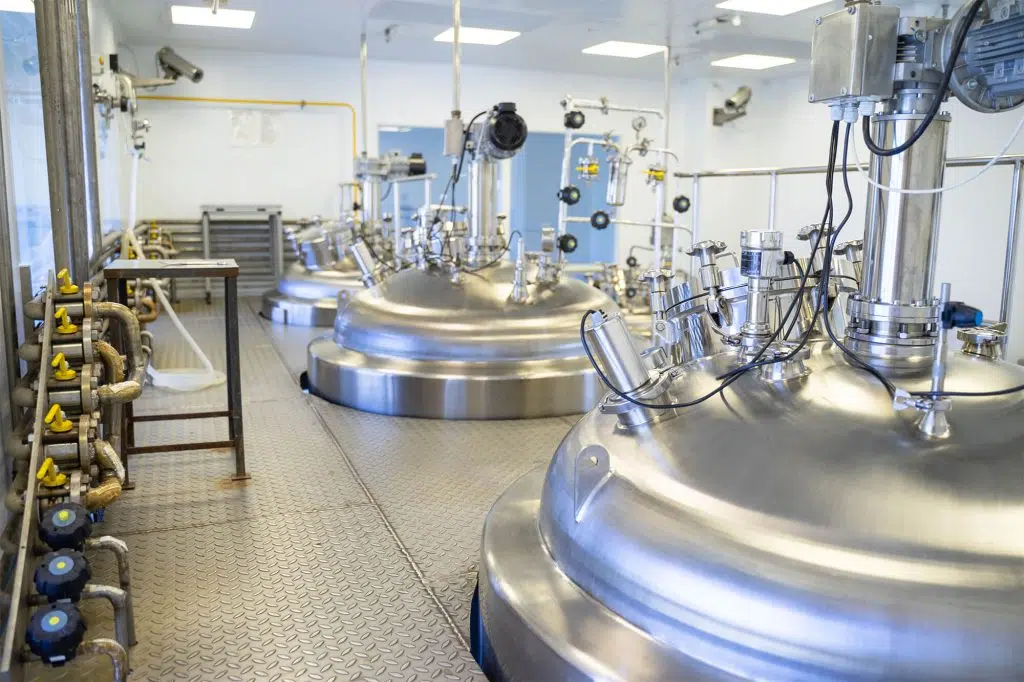

What Is Stainless Steeel Industrial fermenter?
An Industrial Fermenter is a large-scale fermentation system engineered for the production of biomass, biologics, biofuels, enzymes, and other high-value bio-products in commercial and pilot-scale operations. Designed to support a range of microbial, mammalian, fungal, and plant-based cultures, industrial bioreactors deliver the precision, scalability, and automation required for regulated bioprocessing in pharmaceutical, biotech, food, and chemical industries.
Industrial Fermenter Can Meet Various Production Needs
Our state-of-the-art industrial fermenters are built with 316L stainless steel, fully cGMP-compliant, and integrated with advanced automation, real-time monitoring, and clean-in-place (CIP) and steam-in-place (SIP) systems. They are designed to meet the needs of facilities aiming to scale up from lab to production while maintaining strict quality control, batch reproducibility, and regulatory compliance.
Key Features of Our Industrial Fermenter
316L Stainless Steel Construction
Corrosion-resistant, sanitary-grade stainless steel (Ra < 0.4 µm).Electro-polished internal surfaces for hygienic operation.Optional ASME certification for pharmaceutical compliance
Precision Process Control
Temperature control via double jacketed vessel with heating/cooling fluid.pH and DO probes with automatic nutrient/gas adjustments.Cascade control strategies for DO, airflow, agitation, and feed rates
High-Efficiency Agitation System
Top or bottom-mounted impellers with variable speed motors.Rushton, marine, or pitched blade impellers for optimal mixing.Magnetic stirrer or mechanical seal options available
Advanced Control System (PLC)
Siemens PLC-based automation.Touchscreen HMI with intuitive process control.Data logging, remote monitoring, and 21 CFR Part 11 compliance
Know More About Industrial Fermenter
| Parameter | Description |
| Total volume | 5L~200KL |
| Working volume | 30%~70% |
| Tank | Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5 |
| Stirring system | Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm |
| Sterilization | Sterilize in place(SIP), auto control by program |
| Clean | Clean in place (CIP) by spray ball |
| Gas control | Control by rotor meter, air flow 1 vvm |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoam by peristaltic pump |
| Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Sampling valve, can sterilization separately, manual |
| Harvest | Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
| Lid lift system | 30L-500L have lid lift system, 700-1000L have human hole. |
| Pressure | Auto control, BD Germany pressure transmitter |
| Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | We can customize the parameters of industrial fermenter according to customer needs,such as remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate, CSA certificate, Batch culture, Seed transfer, etc. |
Our Factory

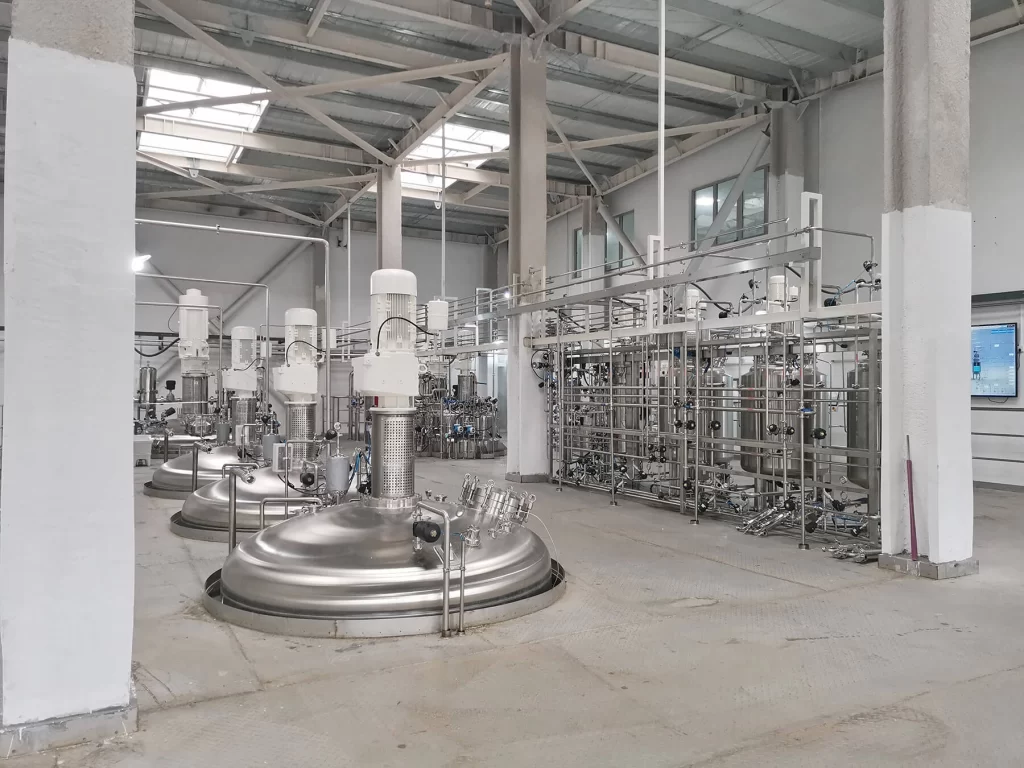

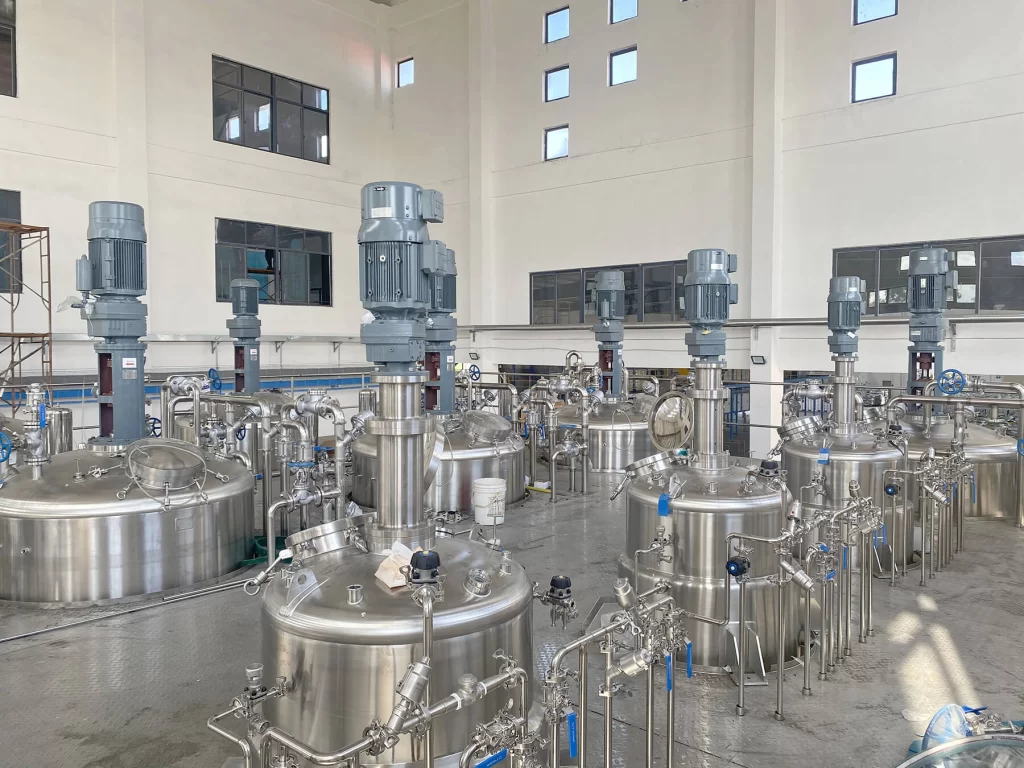

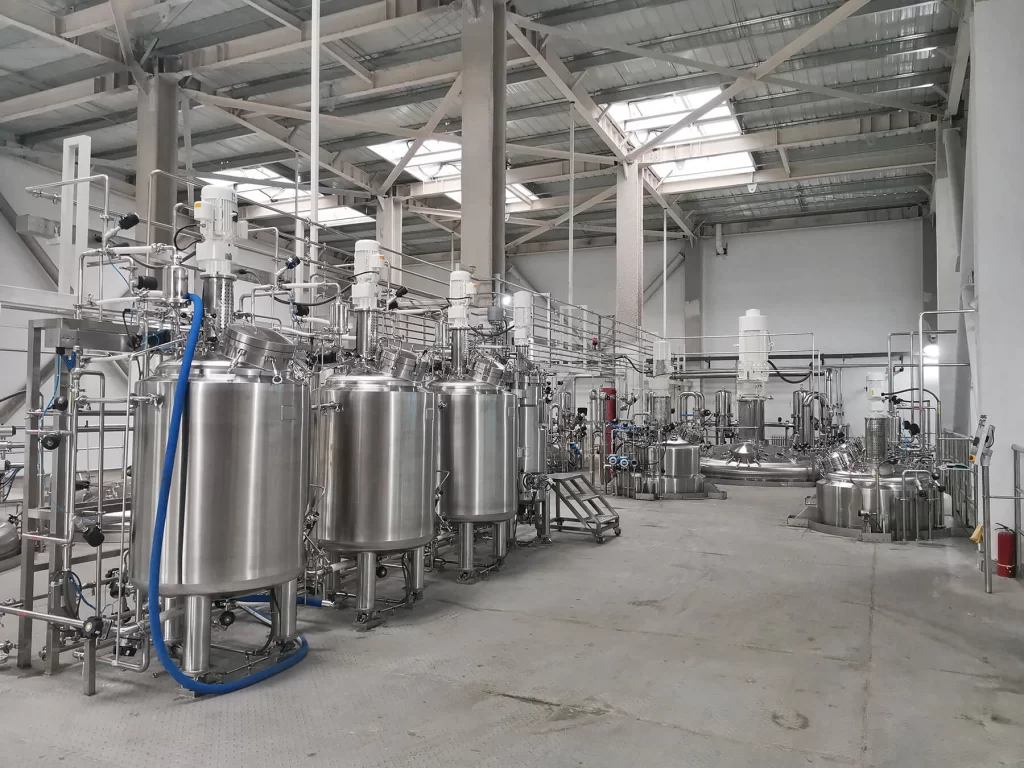

The following picture shows the production workshop of Ferbio.
Other Products
Send Inquiry
Our Advantages
Extensive Manufacturing Experience
With over 20 years of bioreactor production expertise, our factory delivers high-performance systems trusted by global biotech and pharmaceutical companies.
Customized Solutions
We provide tailor-made bioreactor designs to meet diverse application needs, including microbial fermentation, cell culture, and pilot-scale production. ers with a full range of solutions.
Full Range of Products
From lab-scale glass fermenters to industrial stainless steel systems, we offer a complete portfolio to support all stages of bioprocess development.
Global Technical Support
Our experienced engineering and after-sales teams provide responsive service and on-site support worldwide.
