Glass Mammalian Cell Bioreactor
25 Years Experience Bioreactor/Fermenter Manufacturer
Your Reliable Chinese Glass Mammalian Cell Culture Fermenter Supplier : Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.

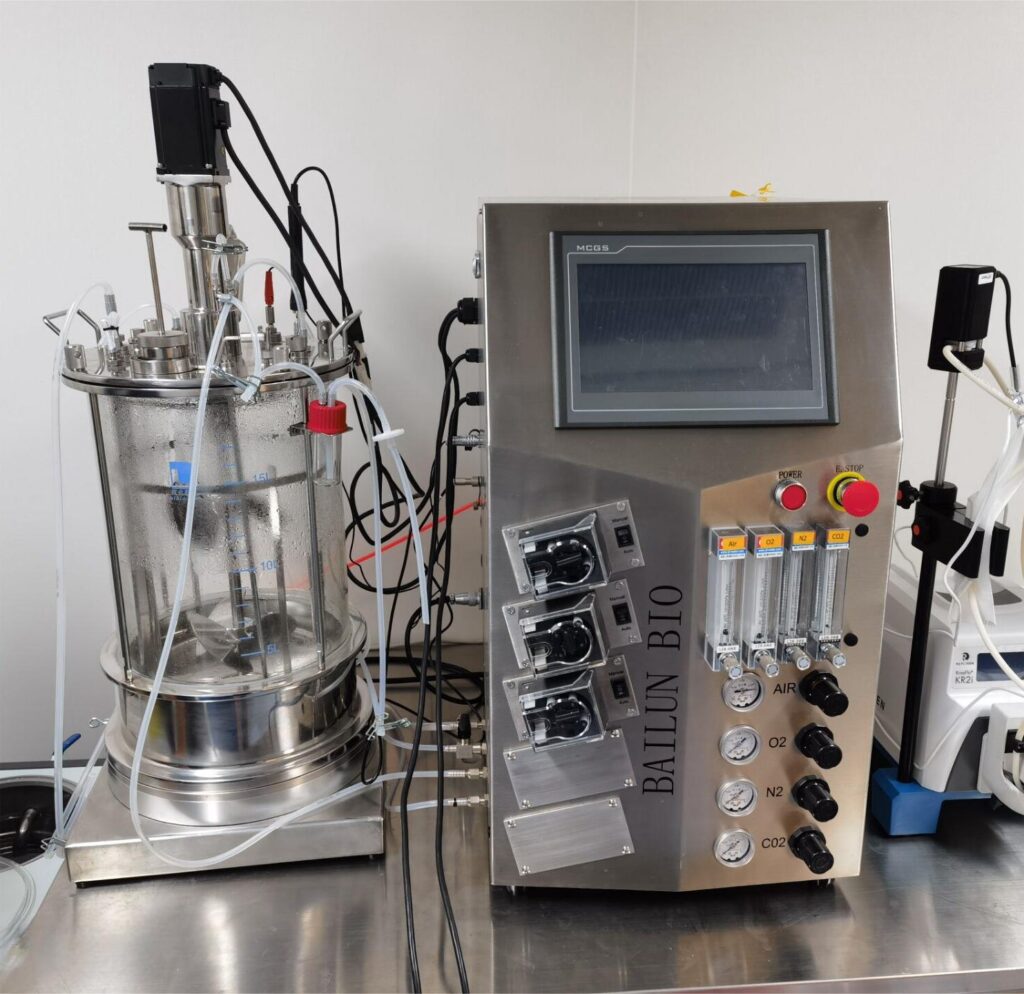

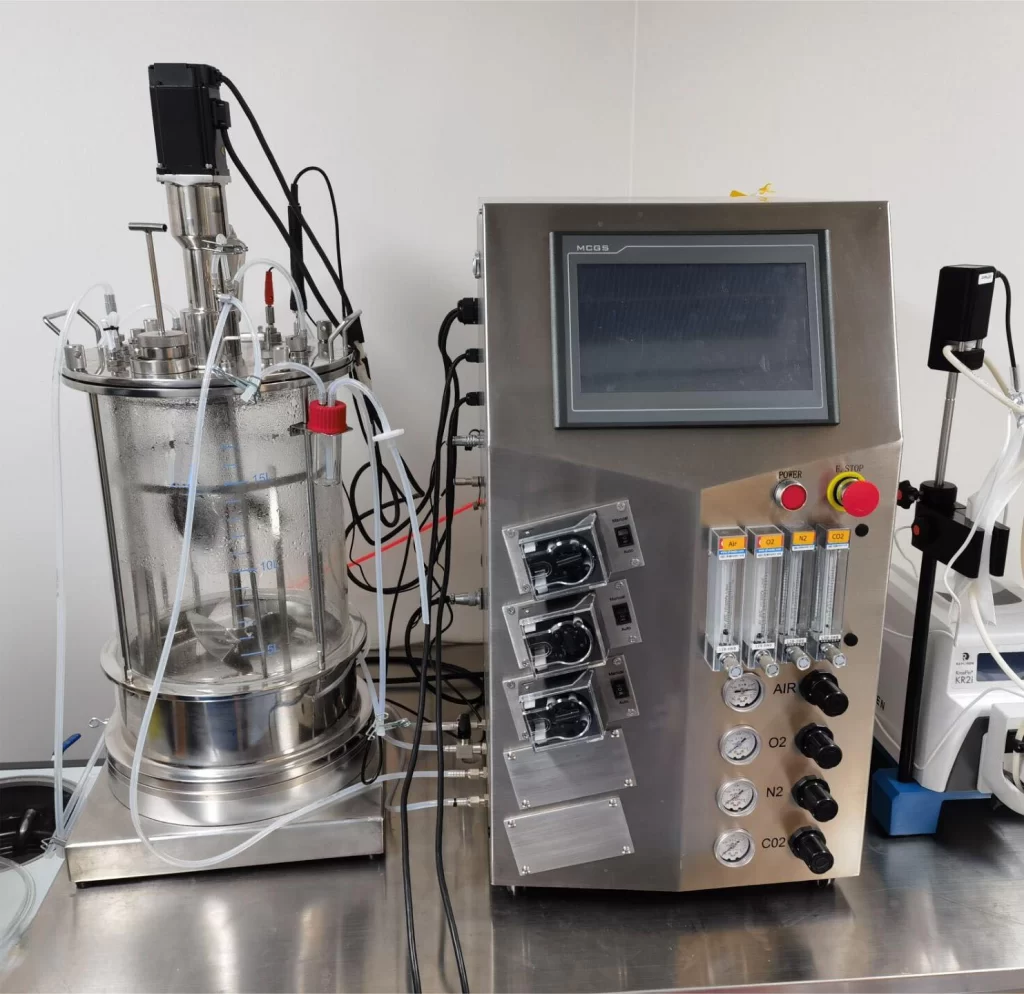

Glass Mammalian Cell Culture Bioreactor
The Mammalian Cell Glass Bioreactor is a specialized, high-performance bioprocessing system designed specifically for cultivating fragile mammalian cells, such as CHO, HEK293, hybridoma, and stem cells. Engineered with borosilicate glass, this bioreactor offers crystal-clear visibility, exceptional chemical resistance, and thermal stability. With integrated low-shear agitation, accurate environmental control, and optional perfusion systems, this unit provides a safe and controlled environment to maximize cell viability and productivity.
Key Features & Competitive Advantages
1. Low-Shear Mixing Mechanism Optimized for Mammalian Cells
Gentle mechanical agitation to minimize cellular stress, ensuring high viability.
Compatible with multiple impeller types (e.g., marine impellers, pitched blade, microcarriers).
Magnetic drive or mechanical seal options available depending on sterility requirements.
Supports batch, fed-batch, and perfusion culture modes.
2. Automated Control for Critical Culture Parameters
Real-time monitoring and control of temperature, pH, dissolved oxygen (DO), agitation speed, gas flow, and foam.
Integrated PLC system compatibility for data logging, remote monitoring, and multi-stage programming.
Alarm and safety interlocks to prevent parameter deviation, ensuring process stability.
3. Flexible, Modular Design
Available in working volumes from 1L to 40L, suitable for R&D, process development.
Modular headplate supports multiple sensor ports, sampling ports, and inlets/outlets for gas, media, and antifoam addition.
4. Adaptable for Suspension or Adherent Cell Lines
Supports use with microcarriers for anchorage-dependent cells such as stem cells or fibroblasts.
Optional fixed-bed or spin-filter systems available for perfusion or high-density cell culture.
Available with CO₂ and O₂ mass flow controllers to simulate physiological gas environments.
Know More About Glass Mammalian Cell Culture Bioreactor
| Parameter | Description |
| Total volume | 0.2L~30L |
| Working volume | 50%~70% |
| Tank | Glass wall with stainless steel lid and bottom, heating from jacket stainless steel bottom. |
| Stirring system | Mechanical drive or Magnetic drive, low shear mixing blades Speed: 50~300rpm |
| Sterilization | Off-site sterilization(Autoclave) |
| Gas control | Air, Oxygen, Nitrogen and CO2 with gas mix station, control by rotor meter, air flow 1vvm, O2/N2/CO2 0.1vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range is water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm,gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor（Biomass）, Printing, Siemens touch screen, etc. |
Our Factory

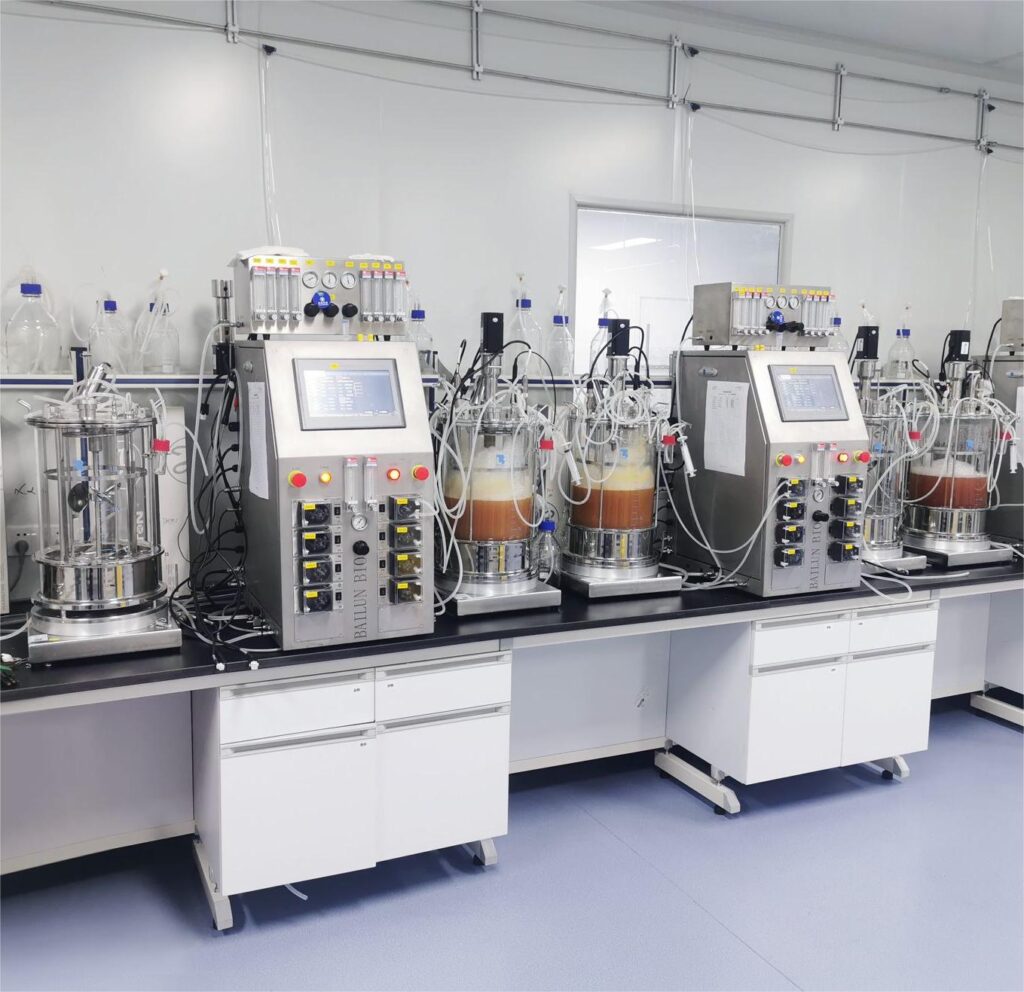

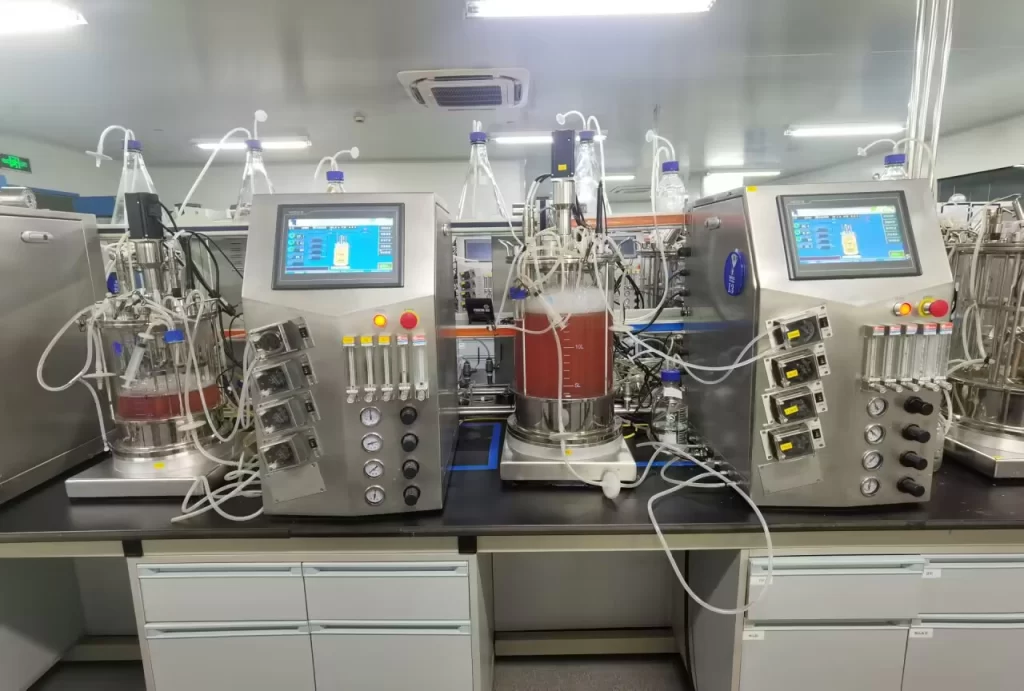

The following picture shows the production workshop of Ferbio.
Other Products
Send Inquiry
Our Advantages
Extensive Manufacturing Experience
With over 20 years of bioreactor production expertise, our factory delivers high-performance systems trusted by global biotech and pharmaceutical companies.
Customized Solutions
We provide tailor-made bioreactor designs to meet diverse application needs, including microbial fermentation, cell culture, and pilot-scale production. ers with a full range of solutions.
Full Range of Products
From lab-scale glass fermenters to industrial stainless steel systems, we offer a complete portfolio to support all stages of bioprocess development.
Global Technical Support
Our experienced engineering and after-sales teams provide responsive service and on-site support worldwide.
