Mechanical Driving Glass Bioreactor
Over 25 years production experience
Your Reliable Mechanical Driving Glass Bioreactor Manufacturer in China: Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.

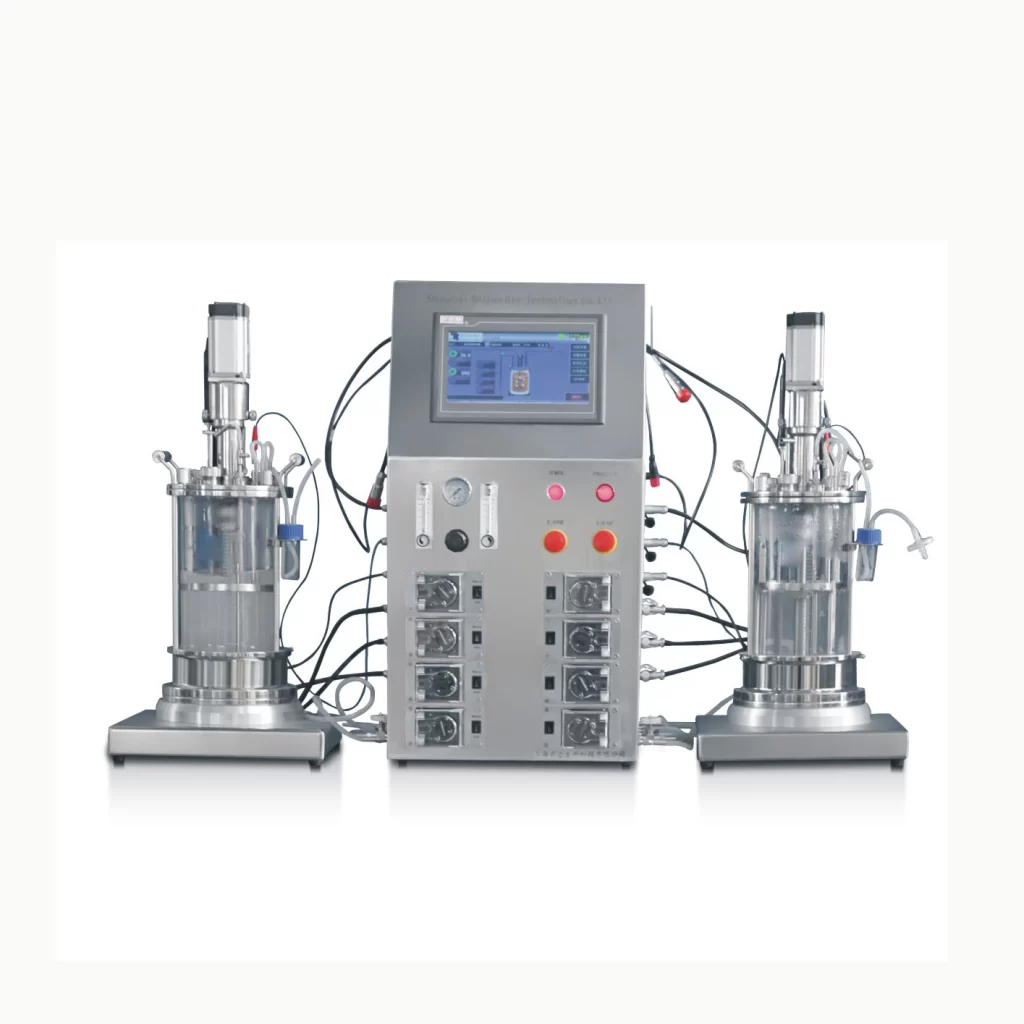

Mechanical Driving Glass Bioreactor
Mechanical stirred glass bioreactors are widely used in microbiology laboratories of research institutes and enterprises, and are ideal tools for precision fermentation experiments. Screening of culture medium formulas suitable for microbial fermentation cultivation, optimization of fermentation process parameters, and validation of production processes and strains.

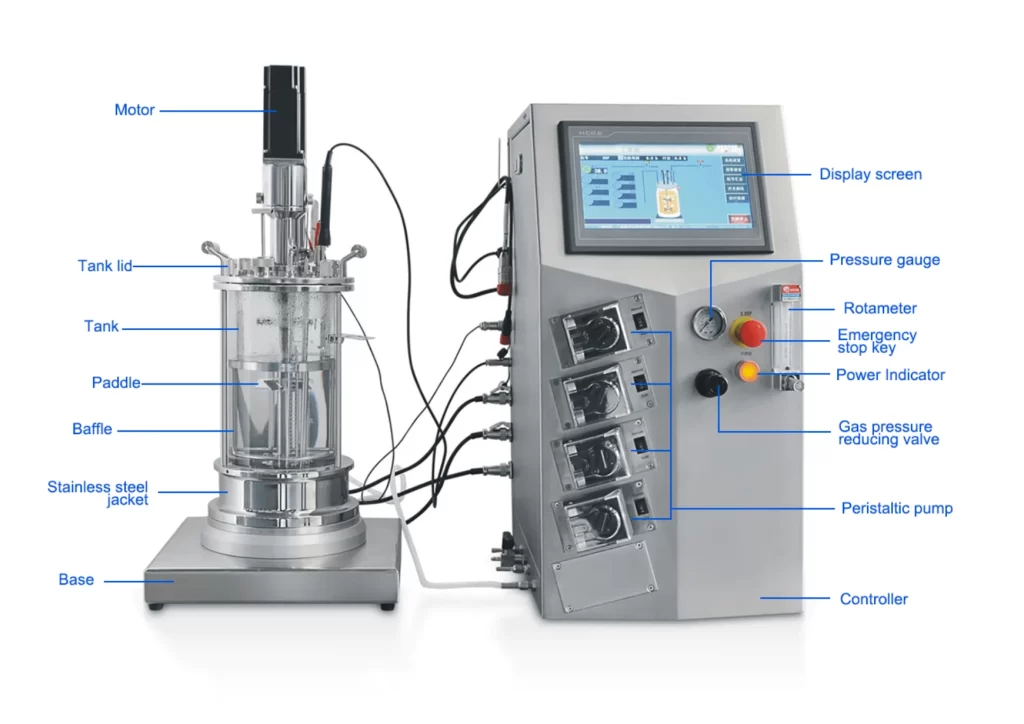

Mechanical Stirring Glass Bioreactor Volume 0.2-40L, consisting of a tank body, stirring system, sealing, ventilation, exhaust, peristaltic pump, feeding bottle, valve, power supply, and control cabinet.

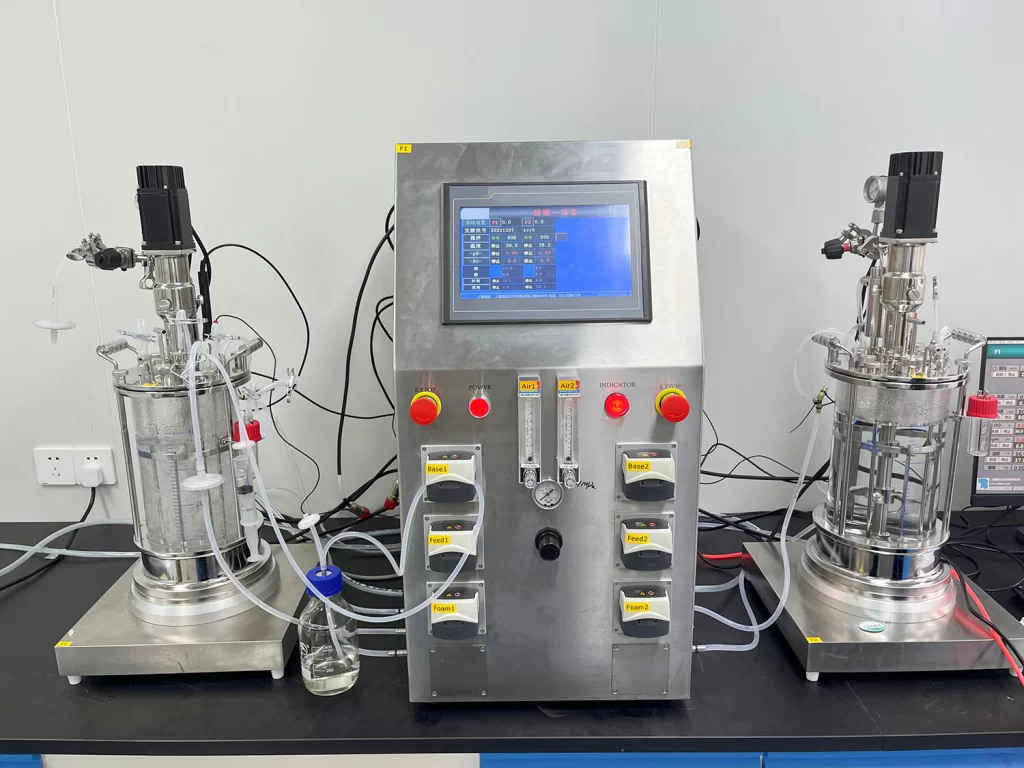

5L-10L mechanical stiring glass bioreactor
We offer multi-stage and multi parallel types for all types of glass or stainless steel bioreactors.We can customize parameters according to customer needs.Our glass bioreactor have been used in many laboratories and make their contribution to the lab-scale experiments.Our bioreactor simple to operate, easy to learn easy to use, low failure rate, suitable for teaching and scientific research.
Know More About Mechanical Driving Glass Bioreactor
| Parameter | Description |
| Total volume | 0.2L,0.5L,1L,2L,3L,5L,10L,20L,30L,40L etc. |
| Working volume | 50%~70% |
| Tank | Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover |
| Stirring system | Mechanical drive(GJ type) or Magnetic drive(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Stir speed: 50~1000rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | We can customize the parameters of mechanical driving glass bioreactor according to customer needs，such as Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc., |
The following picture shows the production workshop of Bailun.
