Glass Photobioreactor
25 Years Experience Bioreactor/Fermenter Manufacturer
Your Reliable Chinese photobioreactor manufacturer : Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.
Introduction to Photobioreactor
Ferbio photobioreactor suitable for culture of algae cells and tissues and other need light for growth cells.Photobioreactor Illumination system is LED light adjustable intensity variable (intensity 0 until 5000lux ) and photo period, LED white/blue/red color temperature is 4500K(wavelength range 450-460nm). 4 light source in side the photobioreactor. Program auto control fermentation parameters, easy operation and clean, small and save place. Standard model control pH/DO/foam/temperature/agitation/gas/light. Control panel language EN/CN/RU.
Multiple Models To Choose

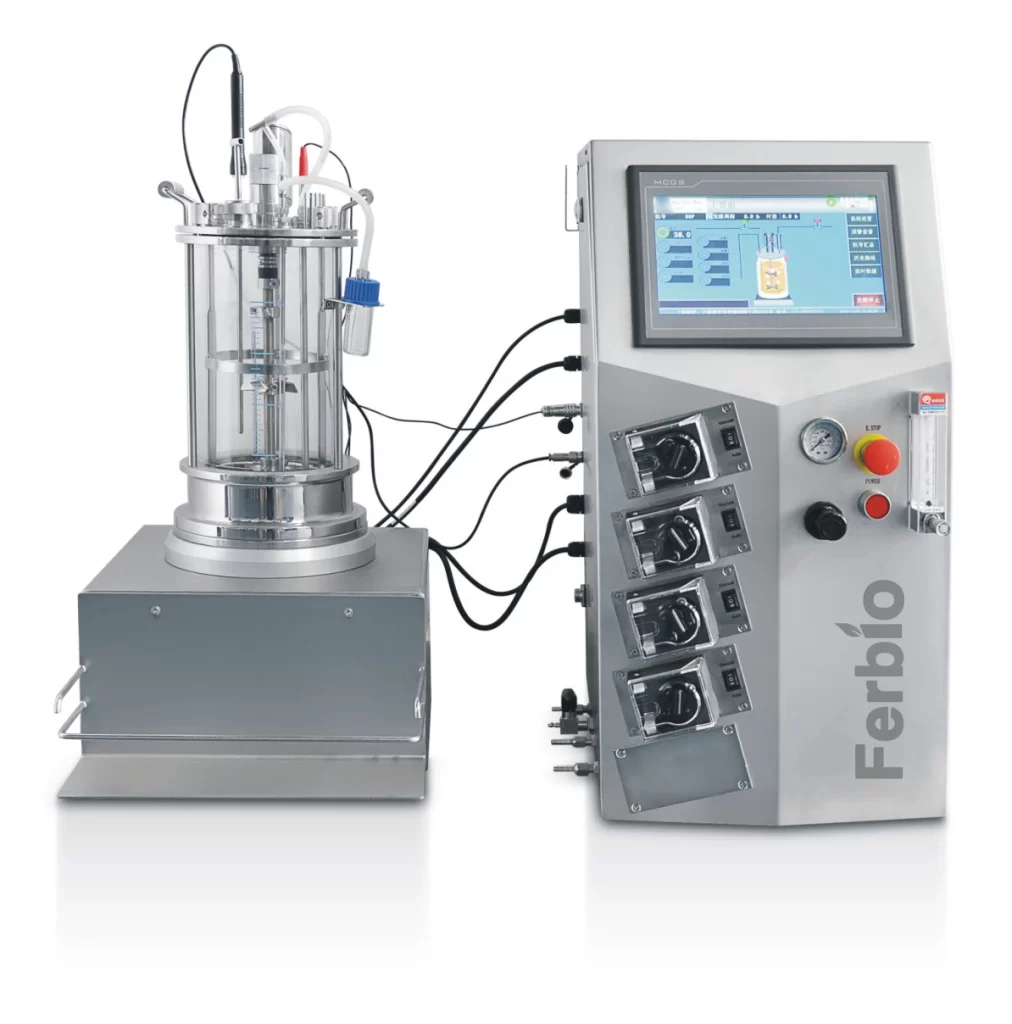

GCL type is lab size photo fermentation system, tank is glass wall with stainless steel bottom, heating from bottom, magnetic drive.
GJL type is lab size, tank is glass wall with stainless steel bottom, heating from bottom, mechanical drive.
GJG type is lab size, tank is all glass single vessel, heating by electric blanket, mechanical drive.
SJAL type is stainless steel light bioreactor for pilot/industry application.
Algae Photobioreactor Can Be Customized
10 inch color touch screen of algae photobioreactor displays all measured values and control parameters, usually each bioreactor has 4 peristaltic pumps for acid, alkali, defoamer, medium. Automatic control pH/DO/temperature/agitation/antifoam. Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.
Photobioreactor have more options: Remote control, Mass flow meter, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Glucose detection, Live cell sensor(Biomass), Variable speed pump, Weighting, Printing, 15” color touch screen, Siemens screen, Program open setting, Tank circulation washing itself, 3D design, Fermentation data analysis software etc..
Know More About Photobioreactor
| Parameter | Description |
| Total volume | 2L~30L |
| Working volume | 50%~70% |
| Stirring system | Mechanical drive(top) or Magnetic drive(top/bottom),3 six-blade paddle and 1 foam breaker, each paddle height adjustable.Speed: 50~1200rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 1-2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Illumination system | LED light (white/blue/green/red) with adjustable intensity available (intensity 0 until 50micromol-m. seg2) and photoperiod |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen, Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | There are multiple parameters to choose from for a photobioreactor,such as remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor（Biomass）, Printing, Siemens touch screen, etc. |
| Parameter | Description |
| Total volume | 5L~200KL |
| Working volume | 30%~70% |
| Tank | Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5 |
| Stirring system | Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm |
| Sterilization | Sterilize in place(SIP), auto control by program |
| Clean | Clean in place (CIP) by spray ball |
| Gas control | Control by rotor meter, air flow 1 vvm |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoam by peristaltic pump |
| Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Sampling valve, can sterilization separately, manual |
| Harvest | Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
| Lid lift system | 30L-500L have lid lift system, 700-1000L have human hole. |
| Pressure | Auto control, BD Germany pressure transmitter |
| Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
| Illumination system | LED light adjustable intensity variable (intensity 0 until 5000lux ) and photo period, LED white color temperature is 4500K(wavelength range 450-460nm). 4 light source in side the reactor. |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate, CSA certificate, Batch culture, Seed transfer, etc. |
The drawing of 30L magnetic stirring photobioreactor
Cases

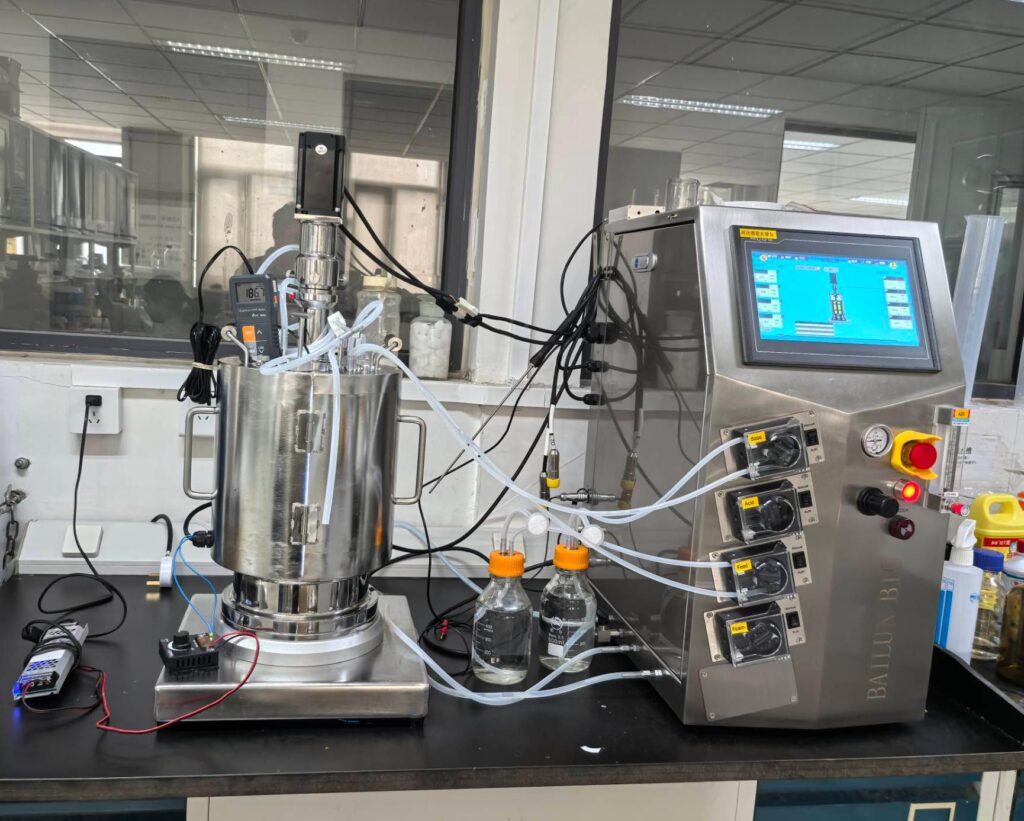

5L glass photobioreactor Ferbio-GJL

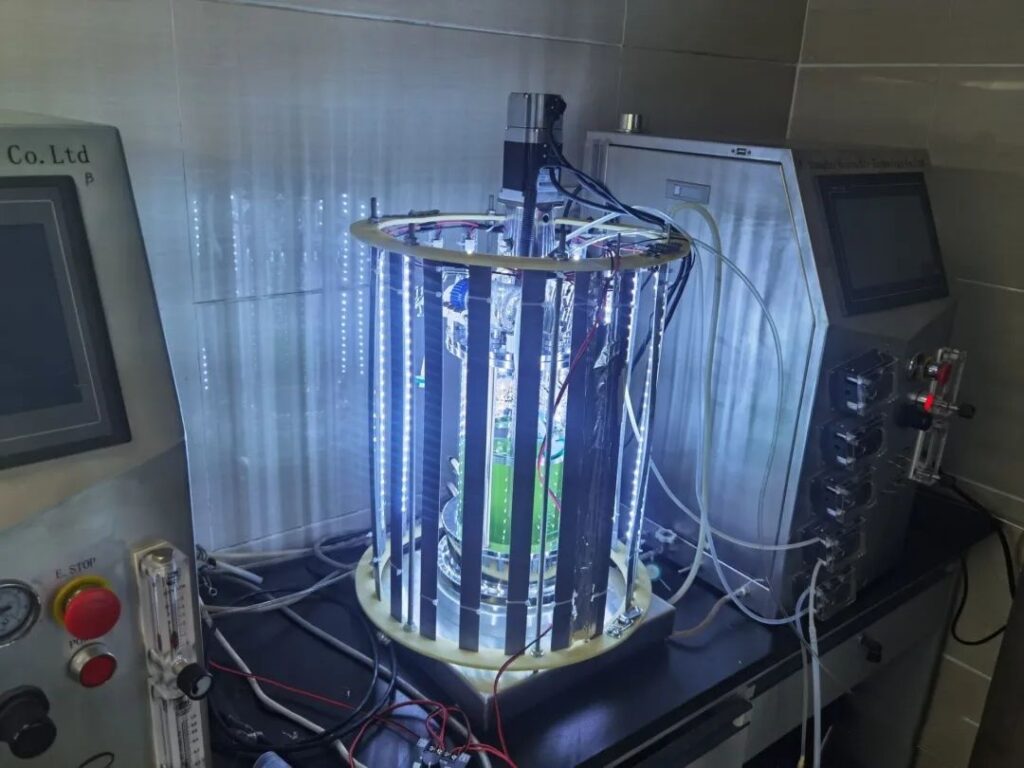

10L Glass Photobioreactor Ferbio-GJL

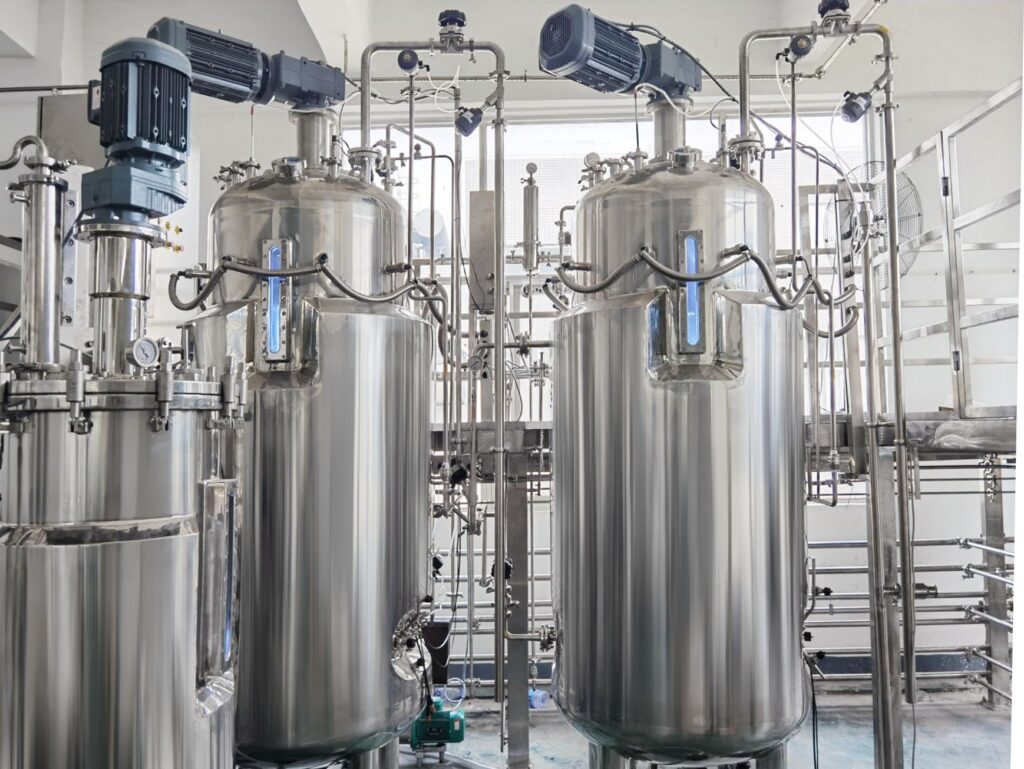

1500L Stainless Steel Photobioreactor Ferbio-SJL

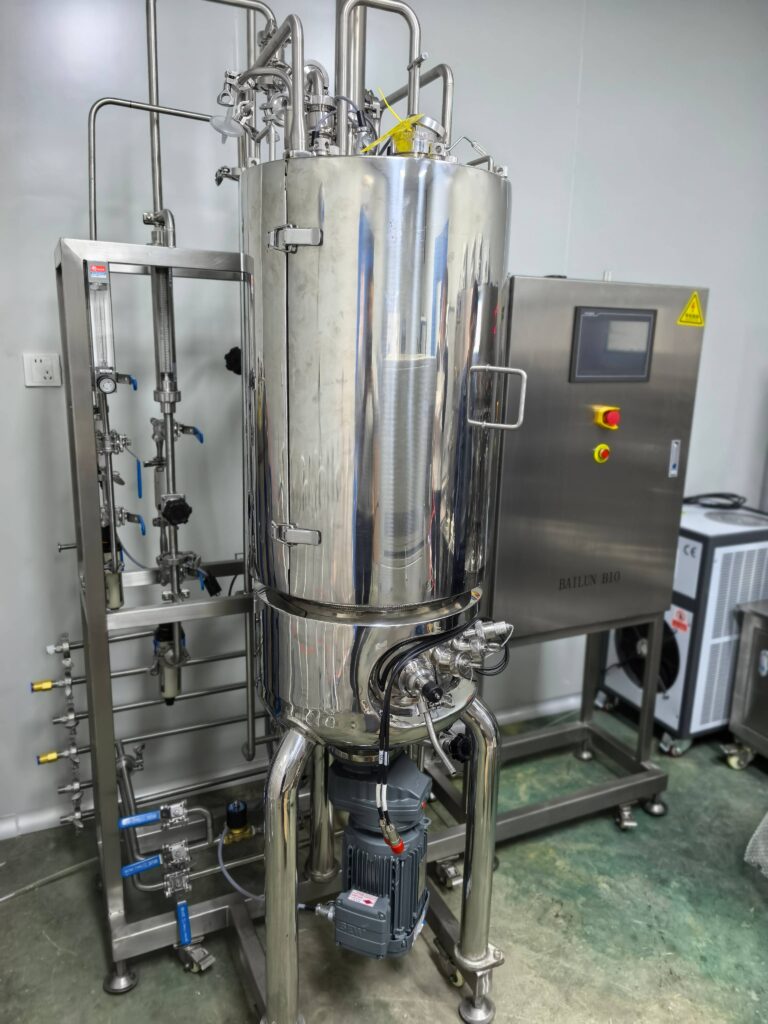

100L Glass Photobioreactor Ferbio-GJL
Our Factory
The following picture shows the production workshop of Ferbio.
Supporting Equipment
The refrigeration system of a chiller unit consists of four basic parts: compressor, condenser, throttle, and evaporator. Connect the four major components in a certain order using copper pipes to form a closed system, which is filled with a certain amount of refrigerant.
The compressor sucks in low-temperature and low-pressure Freon gas from the evaporator, compresses it into high-temperature and high-pressure Freon gas, and then flows through a thermal expansion valve (capillary tube), throttling it into a low-temperature and low-pressure Freon liquid two-phase object. Then, the low-temperature and low-pressure Freon liquid absorbs heat from indoor air in the evaporator, and the cycle of compression condensation throttling evaporation is repeated.
The Bailun steam generator uses well-known imported accessories, which are corrosion-resistant and finely crafted. Fast steam production in one minute, with a thermal efficiency of up to 100.27%. Clean steam, sufficient gas production, can provide stable steam for a long time, ensuring the required heat energy during the drying process. Advanced vertical cross flow structure, using 12Cr1MoVG high-pressure boiler steel and stainless steel laser fins with extremely high heat transfer efficiency, no explosion risk, safer equipment, and better steam quality.

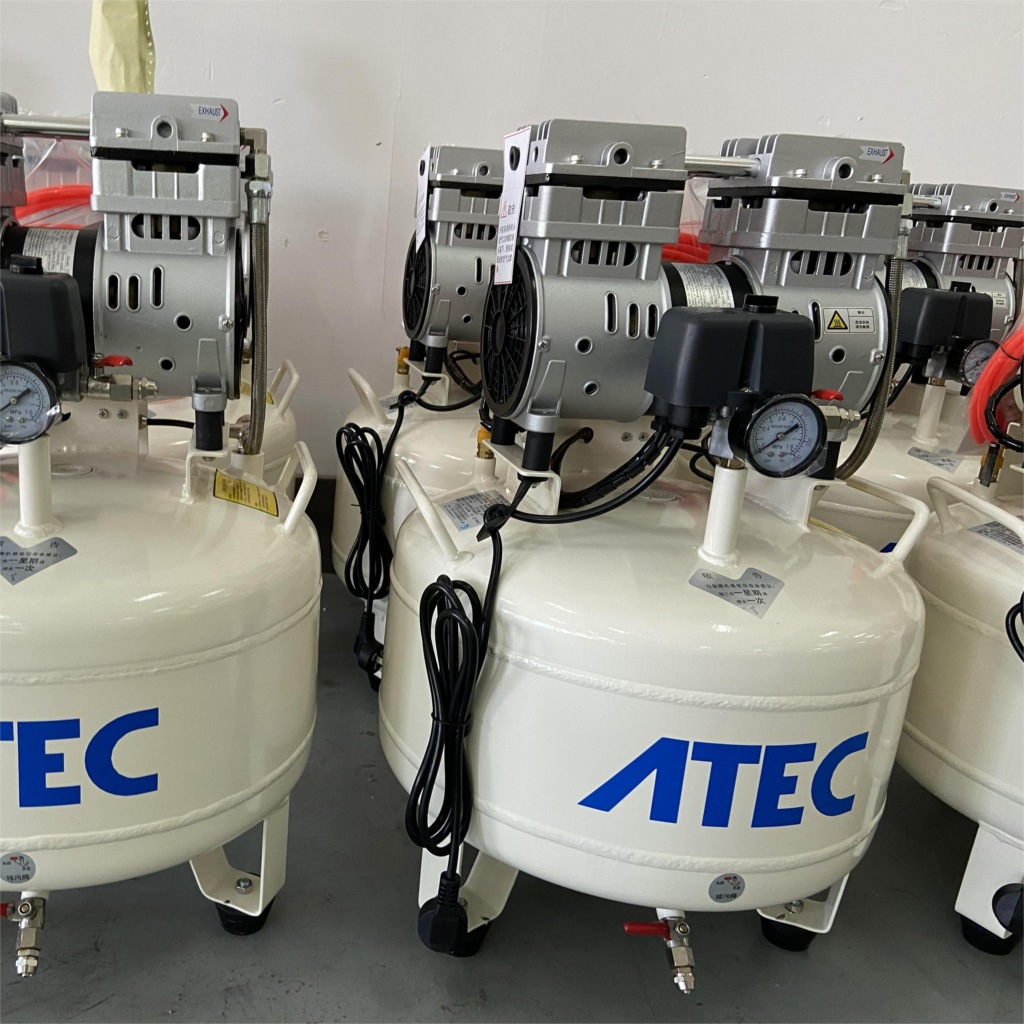

Bailun air compressor is an oil-free and silent air compressor equipped with a domestically produced powerful air pump and a gas tank with built-in anti-corrosion coating. It has a high cost performance and is used as a supporting equipment for bioreactors. Has the following characteristics:
● Independently produce machine heads and components;
The machine is equipped with multiple automatic protection systems for safer use;
● Easy to operate, ready to use upon power connection, automated design, no need for dedicated personnel to operate the work;
●Low noise during work, original oil-free piston system, high efficiency, low loss, and clean gas discharge;
●Optional double-layer vacuum drying and filtering equipment to meet the supply of high-purity air source and protect user equipment;
