Pilot Scale Fermenter
Over 25 years production experience
Your Reliable Chinese Pilot Scale Fermenter Manufacturer: Bailun（BLBIO）
Bailun Biotechnology is a leading pilot Scale fermenter manufacturer in China. Products cover all kinds of bioreactor and fermenter in laboratory, pilot scale and industrial production, including fermenter, animal cell bioreactor, plant cell bioreactor, single-use bioreactor, liquid dispensing system and disposable reactor, etc. Can produce bioreactor of 0.1L-1000KL volume and technical services, and provide intelligent and personalized comprehensive solutions for bioreactors process. Bailun has a large number of experienced fermentation process, biochemical equipment and chemical technical engineers, many famous experts and scholars as the company’s technical consultants, Bailun forever pursuits to create value for customers, and adhere to customer-centric is the core value of Bailun.
Introduction to Pilot Scale Fermenter

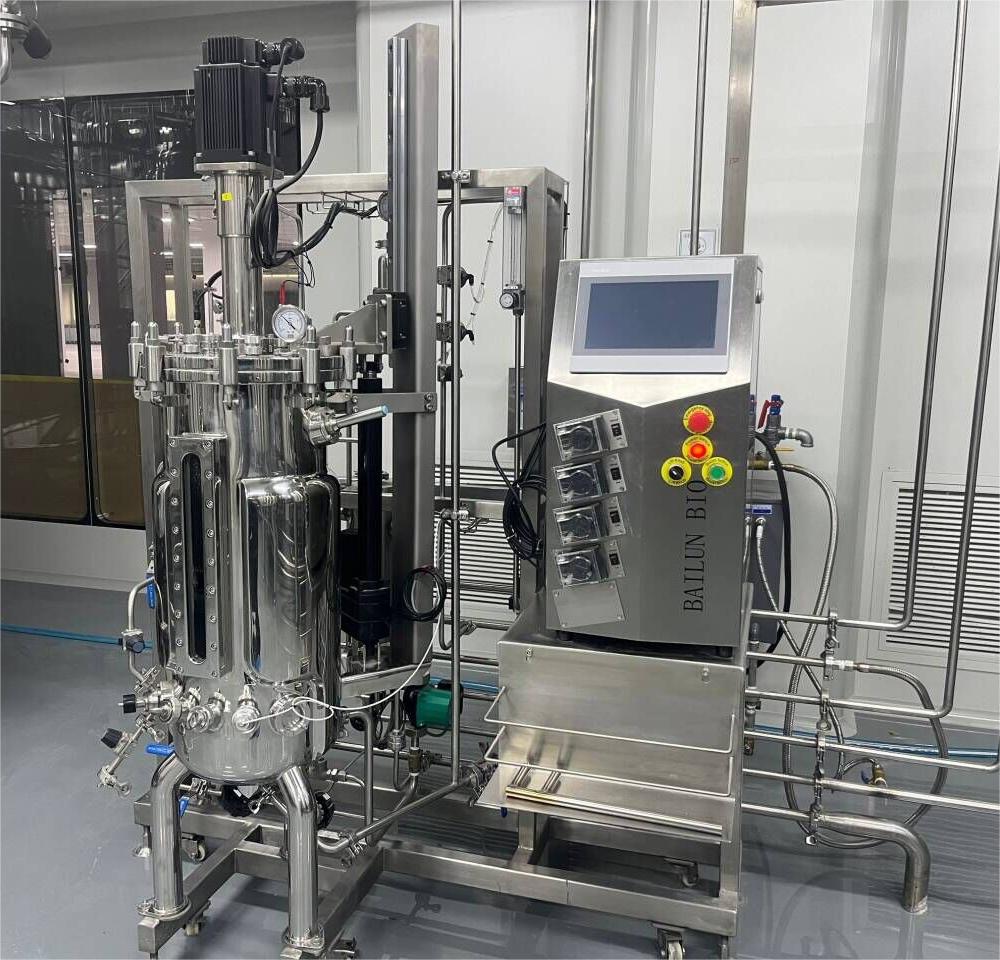

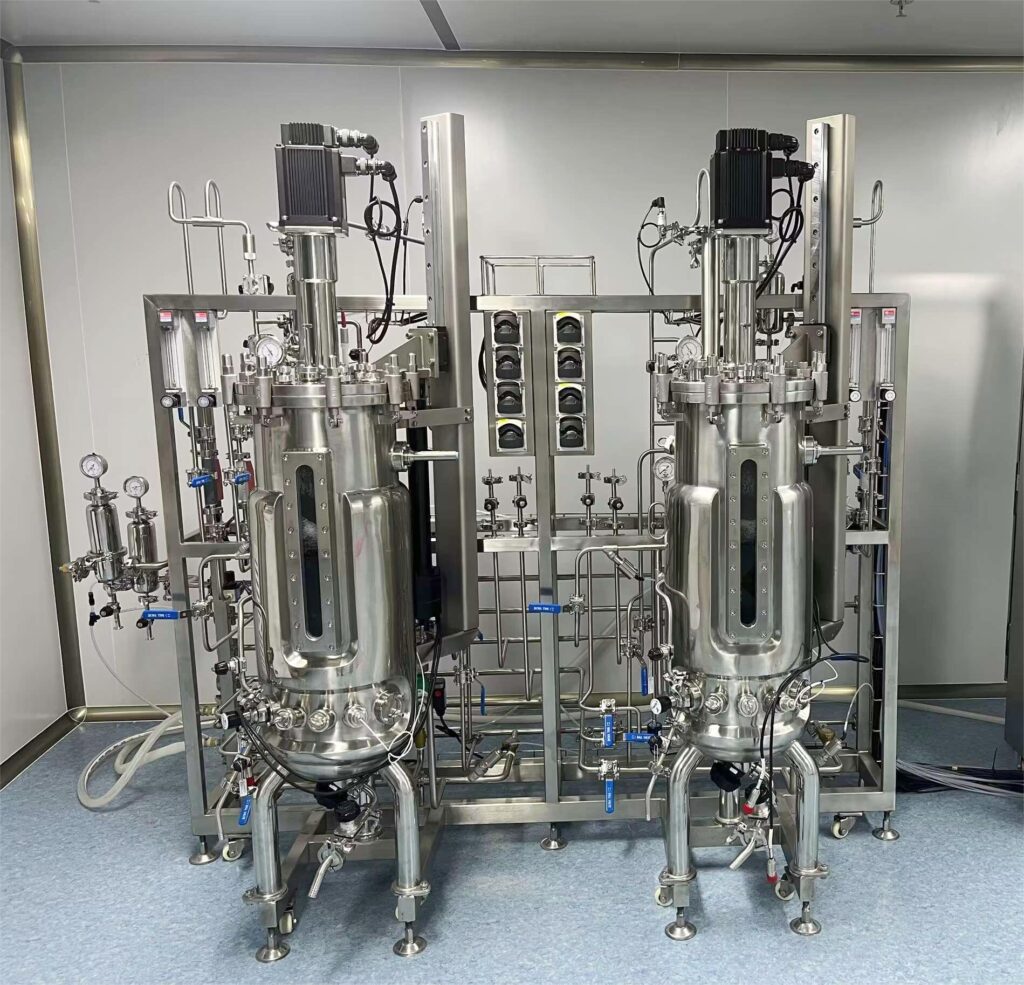

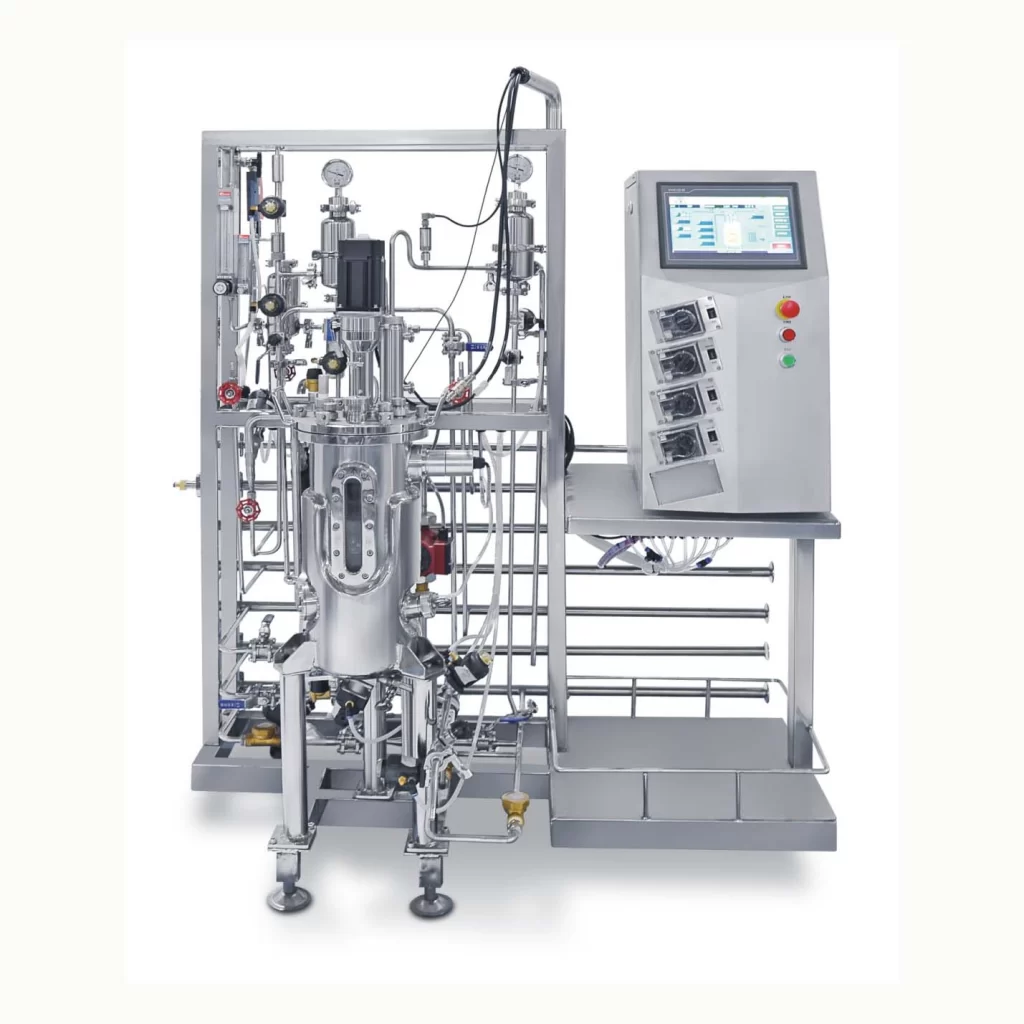

BLBIO-XSJA/XSCA(X means volume liters) is a pilot scale fermenter . The pilot scale fermenter has two mixing methods: mechanical stirring and magnetic stirring. Jacket/double jacket tank is make by stainless steel 316L and SS304. Double jacket have insulation layer. Zero dead zone of all valves to make sure sanitation. The pilot scale fermenter equipment with sampling valve and discharge valve which can sterilization separately. The pilot scale fermenter adopts a large viewing angle tank liquid level observation glass, 12V safety light.
Program auto control fermentation parameters, easy operation and clean, small and save place. Standard model control pH/DO/foam/temperature/agitation/gas. Control panel language EN/CN/RU.
Pilot Scale Fermenter Meet Various Production Needs
SJA type is mechanical seal motor top/bottom drive, have single mechanical seal and double mechanical seal for choose. SCA type is magnetic motor drive, lower torque than mechanical motor drive. Impeller shape can design as client requirement, standard type is turbine impeller.
Pilot scale fermenter can meet various purposes of fermentation, such as batch, batch fed, and for bacterial, yeast, microorganism, animal cell culture, algae etc. culture.
Pilot Scale Fermenter Can Be Customized
10 inch color touch screen of pilot scale fermenter displays all measured values and control parameters. Each bioreactor usually has 4 peristaltic pumps for acid, alkali, defoamer, medium.
Automatic control pH/DO/temperature/agitation/antifoam. Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.
Pilot scale fermenter accept customize and design.Pilot scale fermenter have more optional: Remote control, Mass flow meter, gas O2/N2/CO2, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Glucose detection, Weight system, Live cell sensor(Biomass), Variable speed pump, Printing, 15” color touch screen, Siemens screen, program open setting etc..
Know More About Pilot Scale Fermenter
| Parameter | Description |
| Total volume | 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 200KL etc. |
| Working volume | 30%~70% |
| Tank | Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5 |
| Stirring system | Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm |
| Sterilization | Sterilize in place(SIP), auto control by program |
| Clean | Clean in place (CIP) by spray ball |
| Gas control | Control by rotor meter, air flow 1 vvm |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoam by peristaltic pump |
| Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Sampling valve, can sterilization separately, manual |
| Harvest | Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
| Lid lift system | 30L-500L have lid lift system, 700-1000L have human hole. |
| Pressure | Auto control, BD Germany pressure transmitter |
| Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
| Control parameters | Stainelss steel bioreactor have 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | We can customize the parameters of pilot scale fermenter according to customer needs，such as Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate, CSA certificate, Batch culture, Seed transfer, etc. |

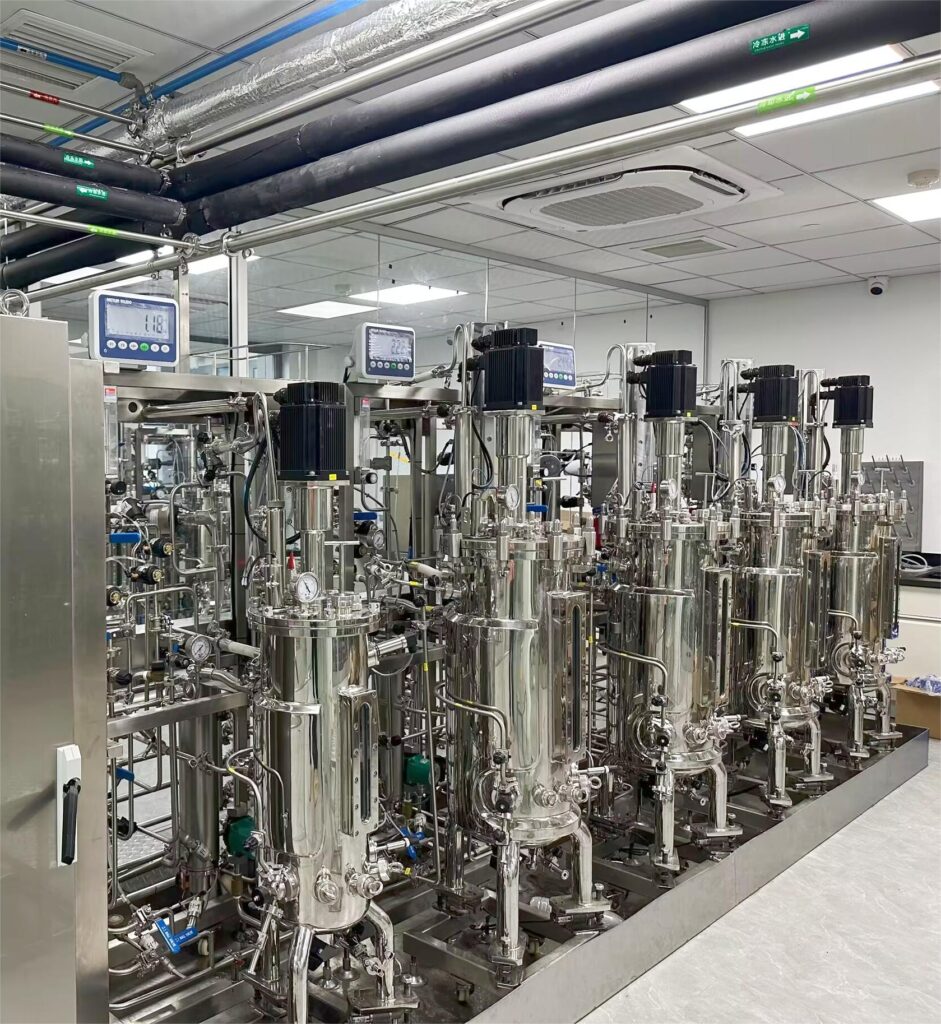

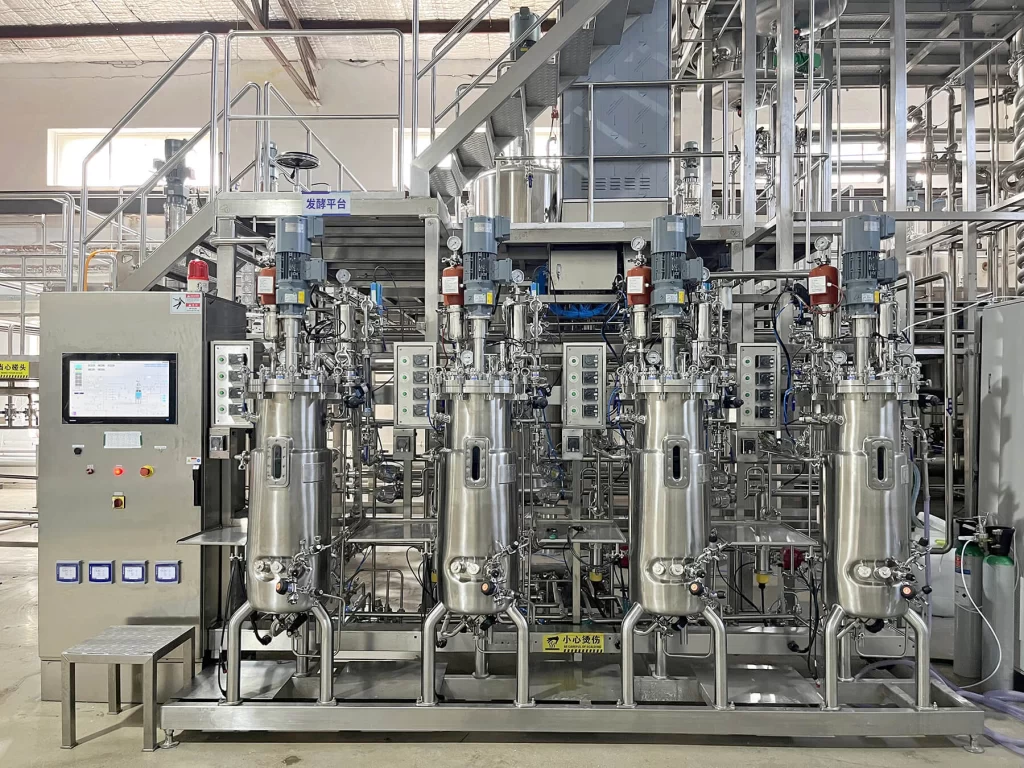

The following picture shows the production workshop of Bailun.
