Fermenter Technical Parameters
| Parameter | Description |
| Total volume | 1L,2L,5L,7L,10L,20L,30L,40L etc. |
| Working volume | 50%~70% |
| Stirring system | Mechanical drive(top) or Magnetic drive(top/bottom), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Speed: 50~1200rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 1-2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Illumination system | LED light (white/blue/green/red) with adjustable intensity available (intensity 0 until 50micromol-m. seg2) and photoperiod |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen, Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor（Biomass）, Printing, Siemens touch screen, etc. |
Fermenter Description

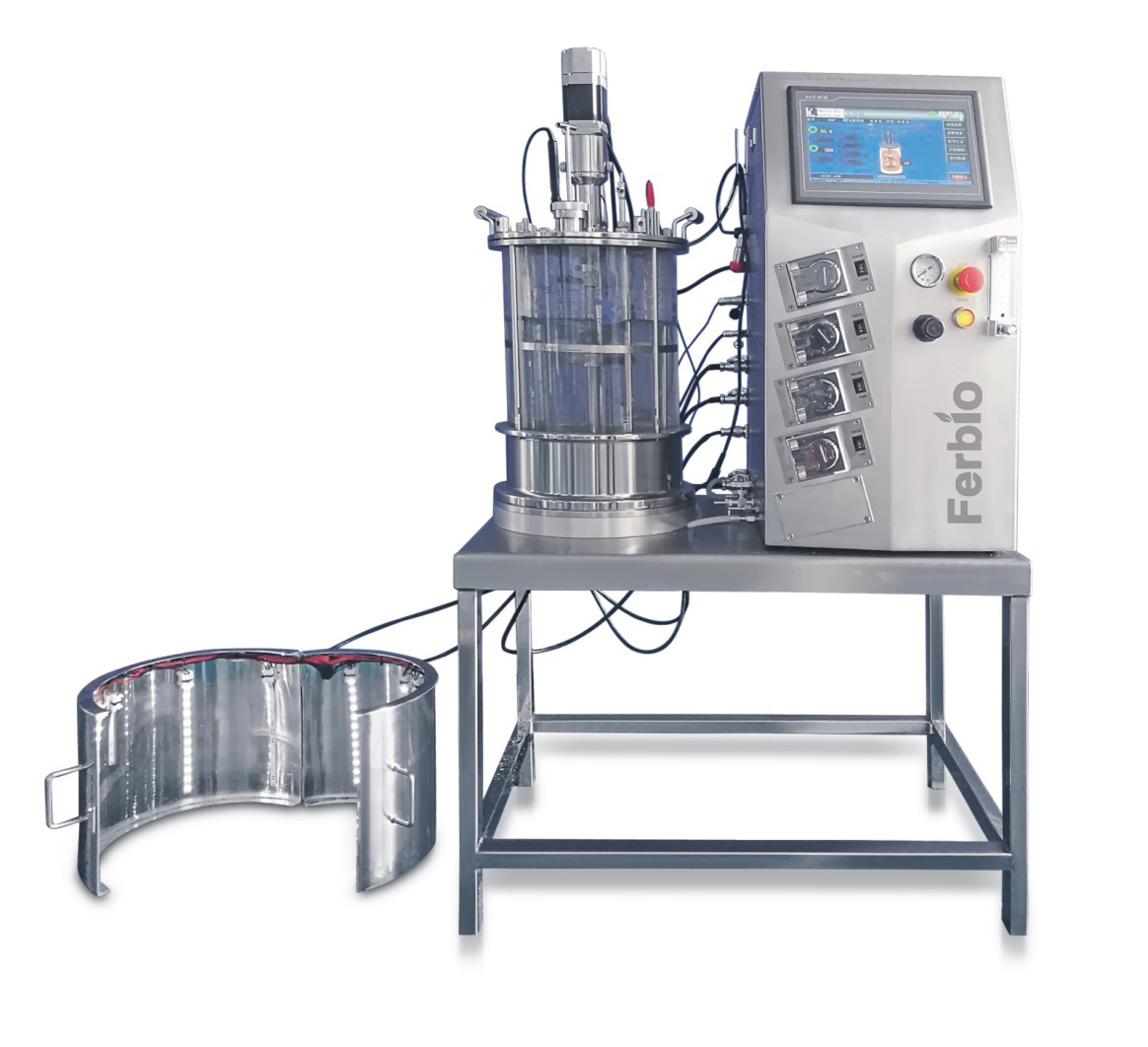

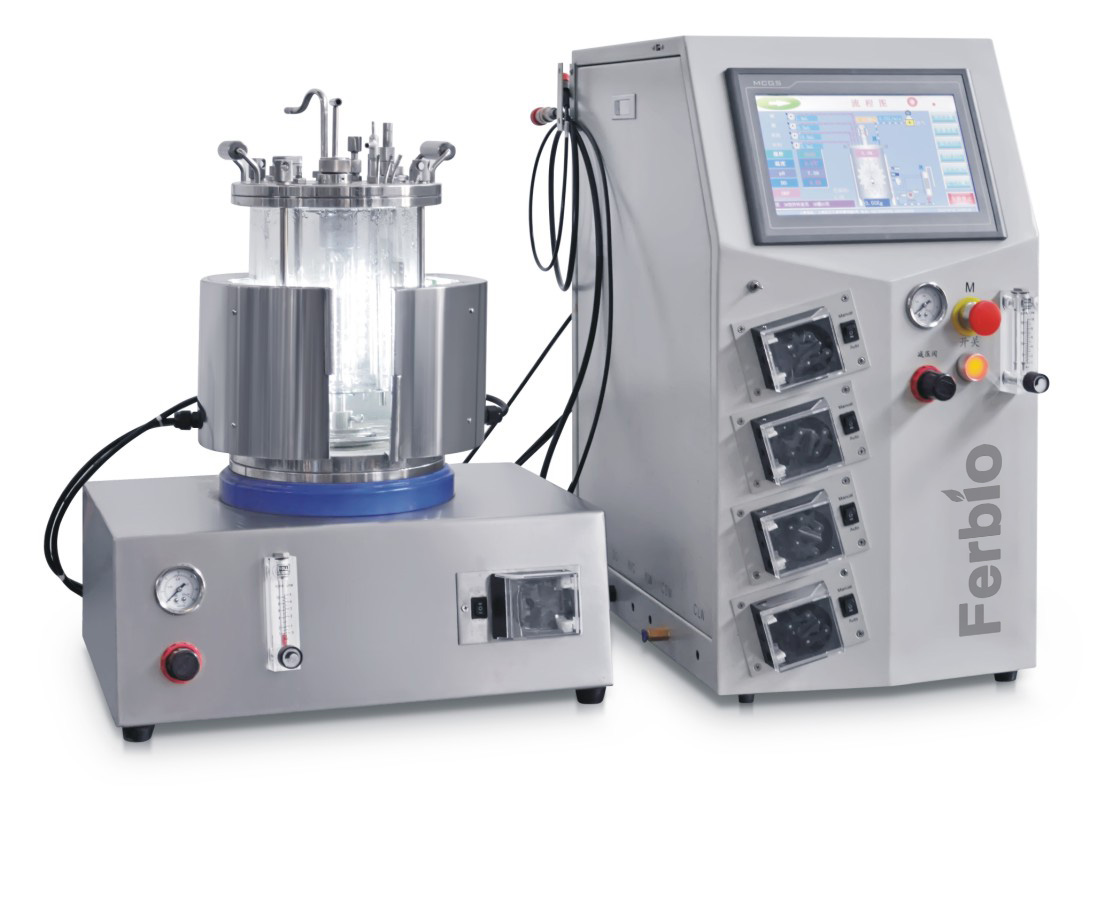

The lighting bioreactor in the BLBlO-GCL series is suitable for culture of algae cells and tissues. Suitable for culture of microbes with low shear force.It adopts a long and narrowtank with a total volume of 3.6L and tank cover specification of 115NW. lt is provided with specially designed low positioncooling jacket and outer casing type light source to ensure the transmission effect of lighting. It has various types of mixingpaddles for selection such as flat paddle, bevel paddle and turbine paddle,The light intensity can be adjusted freelyaccording to the percentage.When working with the BLBlO-/3.1 software, it can simulate various lighting modes, such asday and night alternation.
Control system: 10in touch screen , Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions.
lnternal or external light sources with adjustable intensity can be provided. The culture of marine organisms, especially the cells and tissues of microalgae and macroalgae, is a research focus all overthe world. Among them, some secondary metabolites such as marine terpenoids are widely studied secondary metabolites.Bailun has nearly 20 years of research experience in the lighting culture and photoreaction field.The lighting bioreactor is aresult of these research experiences.
