Single Wall Glass Bioreactor
25 Years Experience Bioreactor/Fermenter Manufacturer
Your Reliable Chinese Single Wall Glass Bioreactor Manufacturer : Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.

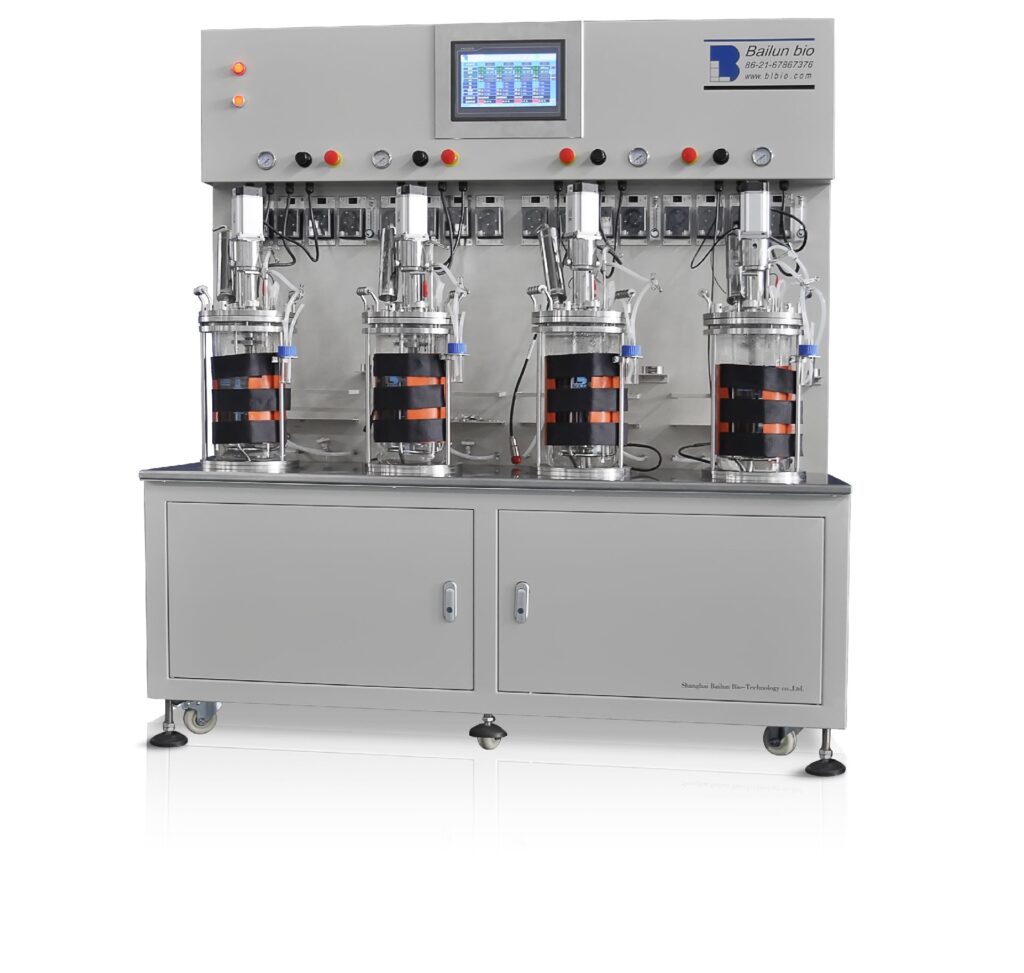

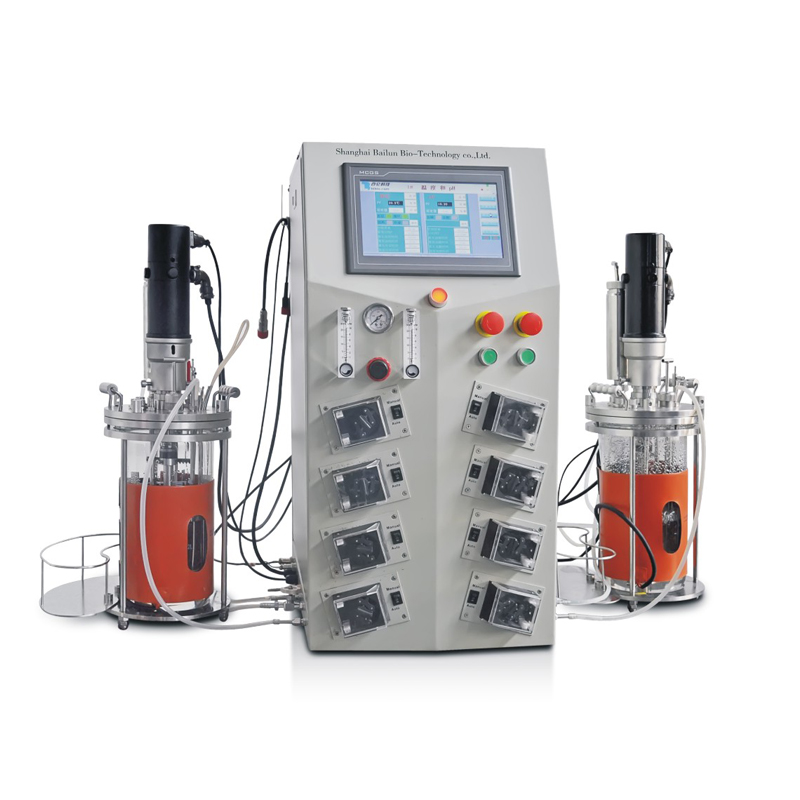

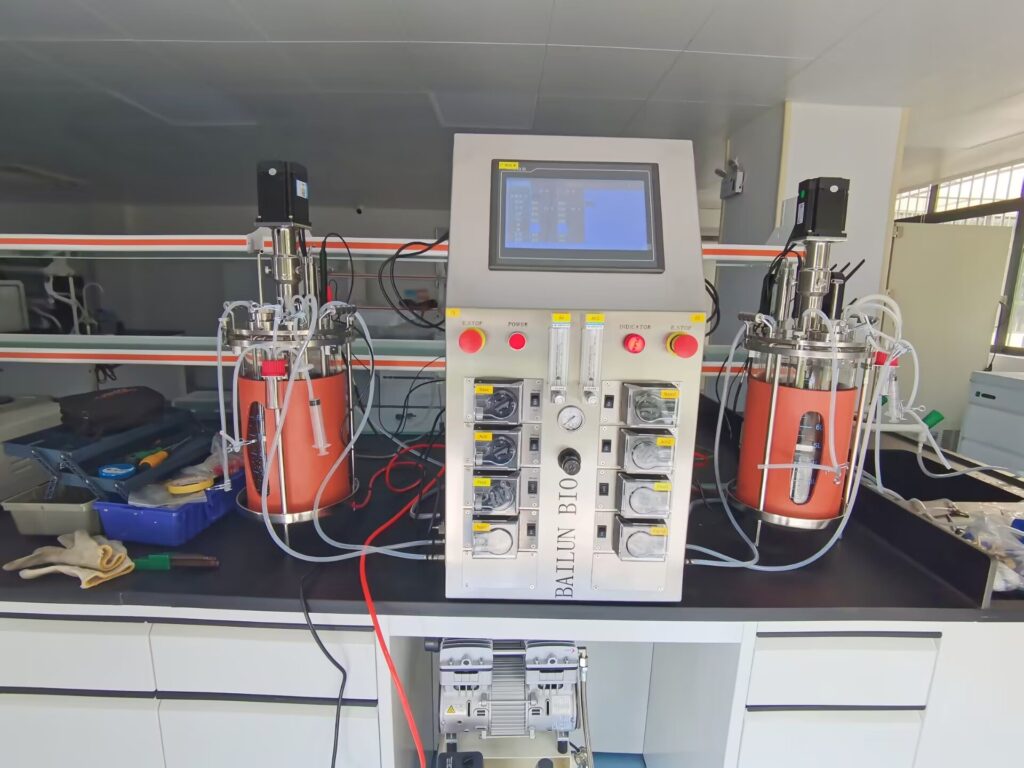

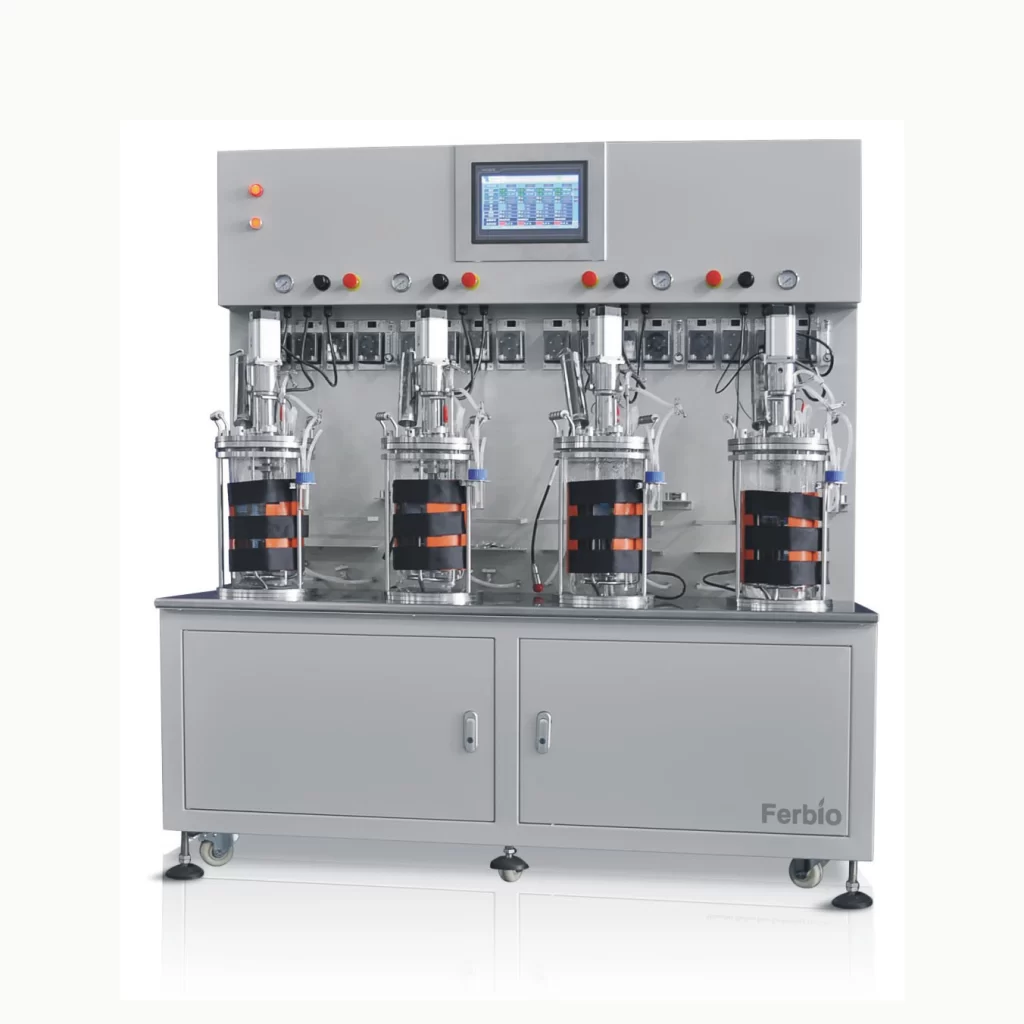

Single Wall Glass Bioreactor
Ferbio single wall glass bioreactor is a highly versatile, transparent, and cost-effective bioreactor system designed for small-scale fermentation, cell culture experiments, and process development in research labs, universities, and biotech startups. Made from borosilicate glass, this single-jacketed vessel offers a clear view of the cultivation process and is compatible with a wide range of sensors and control systems.
Ferbio single wall glass bioreactor is magnetic or mechanical drive on the top, off-site sterilization, program auto control fermentation parameters, easy operation and clean, small and save place.
Single Wall Glass Bioreactor Can Be Customized
10” color touch screen displays all measured values and control parameters, usually each bioreactor has 4 peristaltic pumps for acid, alkali, defoamer, medium. Automatic control pH/DO/temperature/agitation/antifoam.
Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.
Accept customize and design.
Whether you’re culturing bacteria, yeast, plant cells, or mammalian cell lines, this single wall bioreactor provides the essential functionality required for controlled bioprocess environments. It is ideal for laboratories that require flexibility, easy sterilization, and reliable performance without the added complexity of double-wall thermal circulation.
Know More About Single Wall Glass Bioreactor
| Parameter | Description | |
| Total volume | 0.2L~30L | |
| Working volume | 50%~70% | |
| Tank | Full single glass vessel, heating by electric blanket. Lid made by stainless steel 316L with ports, condenser on the cover | |
| Stirring system | Mechanical drive or Magnetic drive on top , 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Stir speed: 50~1000rpm/50-500rpm | |
| Sterilization | Off-site sterilization (Autoclave) | |
| Gas control | Control by rotor meter, air flow 2vvm. | |
| Feeding | Automatically feeding by peristaltic pump | |
| Anti-foam control | Automatically add antifoamer by peristaltic pump | |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ | |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. | |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. | |
| Sampling | Manual sampling | |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions | |
| Optional configuration | Single wall glass bioreactor Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor（Biomass）, Printing, Siemens touch screen, etc. | |
Our Factory
The following picture shows the production workshop of Ferbio.
Other Products
Send Inquiry
Our Advantages
Extensive Manufacturing Experience
With over 20 years of bioreactor production expertise, our factory delivers high-performance systems trusted by global biotech and pharmaceutical companies.
Customized Solutions
We provide tailor-made bioreactor designs to meet diverse application needs, including microbial fermentation, cell culture, and pilot-scale production. ers with a full range of solutions.
Full Range of Products
From lab-scale glass fermenters to industrial stainless steel systems, we offer a complete portfolio to support all stages of bioprocess development.
Global Technical Support
Our experienced engineering and after-sales teams provide responsive service and on-site support worldwide.
