Fermenter Technical Parameters:
| Parameter | Description |
| Total volume | 5L,10L,15L,20L,30L,40L etc. |
| Working volume | 40%~70% |
| Tank | Glass wall with stainless steel lid and bottom, heating from jacket bottom. |
| Stirring system | Mechanical drive(top) or Magnetic drive(top/bottom), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Mix speed: 50~1000rpm/50-400rpm |
| Sterilization | Sterilization in situ (SIP), manual |
| Gas control | Control by rotor meter, air flow 1-2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control by program, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weighting system, Live cell sensor（Biomass）, Printing, Siemens touch screen, etc. |
Fermenter Description:

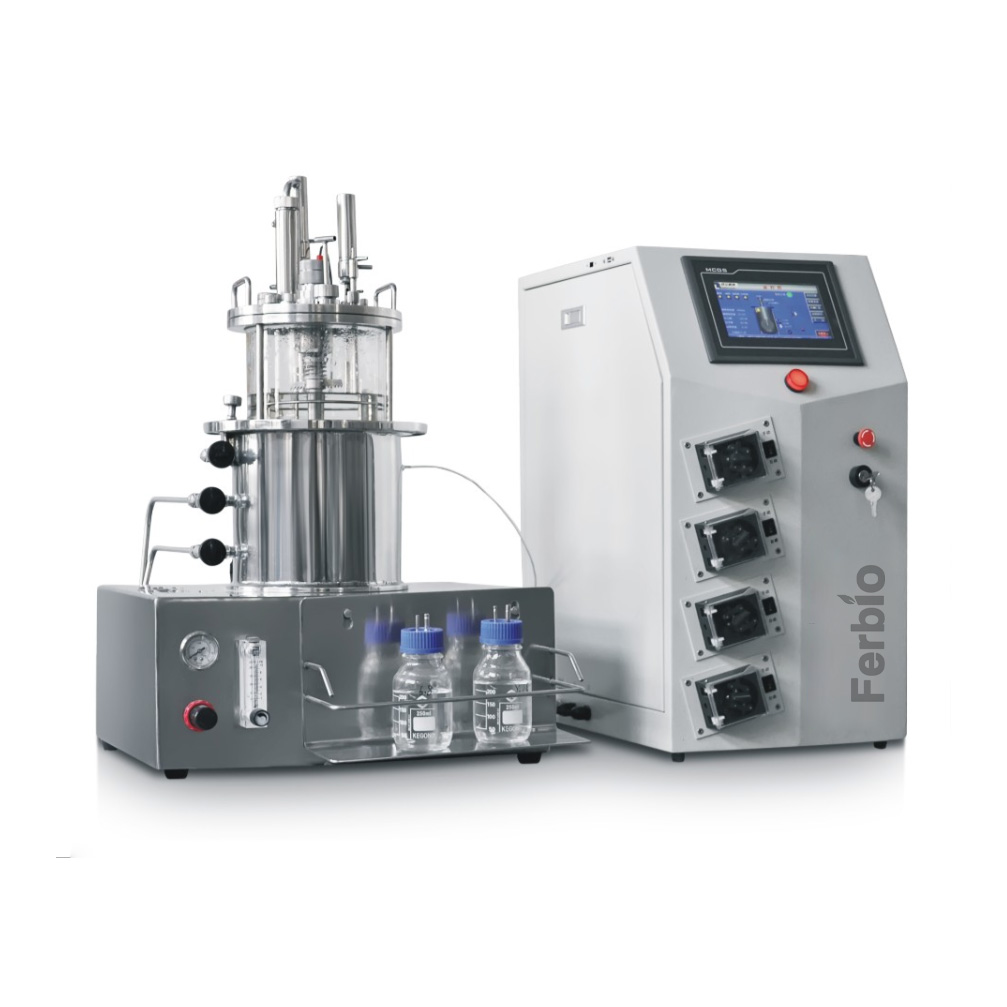

The multifunctional glass biological fermentation system uses a color touch screen to display all measured values and control parameters, which greatly facilitates the user’s operation. 4 peristaltic pumps are installed on the front of the control box, which can replenish acid, alkali, defoamer and medium to the fermenter. Various parameters during fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. Compact structure, various components can be integrated on the fermentation system. Sterilize in situ. The lower drive magnetic indirect coupling mechanical stirring method is adopted, the structure is simple, the operation is stable, the stainless steel tank body + part of borosilicate glass, stirring system: magnetic stirring system, using strong magnetic mechanical suspension magnetic stirring system (fully sealed, zero leakage, no pollution , Maintenance-free, top-hanging magnetic stirring system.
Control system: 10in touch screen , Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions.
Fermenter Application:
- Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.
- Human vaccine production: Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.
- Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell(293,CHO etc.), plant cell, algae, enzyme, protein, additives, antibiotics etc.
