Tubular Centrifuge
25 Years Experience Bioreactor/Fermenter Manufacturer
Your Reliable Chinese Tubular Centrifuge Supplier : Ferbio
Ferbio is a leading bioreactor manufacturer in China.Ferbio produces various types of biological fermenters, capable of producing bioreactors with volumes ranging from 0.1L to 1000KL, and provides technical services to provide intelligent and personalized comprehensive solutions for bioreactor processes. The products provided by Ferbio are classified by scale, there are seed fermenters, pilot scale bioreactors, and industrial scale bioreactors; In terms of usage, there are vaccine bioreactors, cell culture bioreactors, bacterial bioreactors, plant cell bioreactors, etc. In addition, Ferbio also has supporting equipment for bioreactors, such as air compressors, chillers, steam generators, centrifuges, etc. Ferbio has a large team of experienced fermentation process, biochemical equipment, and chemical technology engineers, with many renowned experts and scholars serving as technical consultants for the company. Ferbio always puts customer needs first and insists on putting customers at the center.
Introduction to Tubular Centrifuge
Engineered for lab-scale, pilot-scale, and industrial bioreactor systems, our steam generators provide instantaneous steam production, high energy efficiency, and complete compatibility with cleanroom environments. Whether you’re sterilizing stainless steel fermentation tanks or single-use bioreactors, our system ensures you meet regulatory and GMP standards without compromising productivity.
Key Features of Our Steam Generator for Bioreactors
1. Rapid Steam Generation
Our high-performance boilers generate clean steam in minutes, minimizing downtime and optimizing your batch turnover time. Quick startup capability ensures fast SIP cycles.
2. High Steam Purity
The steam produced is suitable for direct contact with product-contact surfaces. Optional configurations include clean steam and pure steam generators.
3. High-Grade Material Construction
Constructed from 316L stainless steel, the wetted parts and chambers are resistant to corrosion and meet pharmaceutical hygiene standards.
4. Multi-Level Safety Mechanisms
Features include automatic pressure relief, water level sensors, dry run protection, overheat protection, and emergency stop systems for operational safety.
5. Energy-Efficient Operation
Our generator uses high-efficiency heating elements or burners, combined with intelligent power management, to reduce operational costs without compromising steam output.
Know More About Tubular Centrifuge
| Item /Type | GQ45 | GQ75 | GQ105 | GQ125 | GQ150 | |
| Bowl | Inner Dia (mm) | 45 | 75 | 105 | 125 | 142 |
| Height(mm) | 240 | 450 | 730 | 730 | 730 | |
| Sedimentation Volume (L) | 0.4 | 2.2 | 6 | 8 | 10 | |
| Max Speed (r/min) | 10000-28000 | 20000 | 16300-19000 | 15000 | 14000 | |
| Inlet Nozzle Dia(mm) | 2/2.5/3 | 3/5 | 6/8/10 | 6/8/10 | 6/8/10 | |
| Inlet pressure | ≧0.05 Mpa | |||||
| Water Through Capacity (L/h) | 100 | 100-600 | 1200 | 1500 | 2500 | |
| Motor | Model | Single Phase | 3 phase | |||
| Power | 0.4 | 1.5 | 2.2 / 3 | 3 / 4 | 3 / 4 | |
| Dimension (mm) | L*W*H (mm) | 500*420*760 | 760*450*1120 | 840*500*1600 | 900*550*1600 | 1020*600*1600 |
| Weight (kg) | 90 kg | 300 kg | 500-550 kg | 580-630 kg | 600-660 kg | |
| Material | All contact with material made by SS304/316L | |||||
| Starting time (min) | About 2 | |||||
| Stopping time | About 10 | |||||
Our Factory

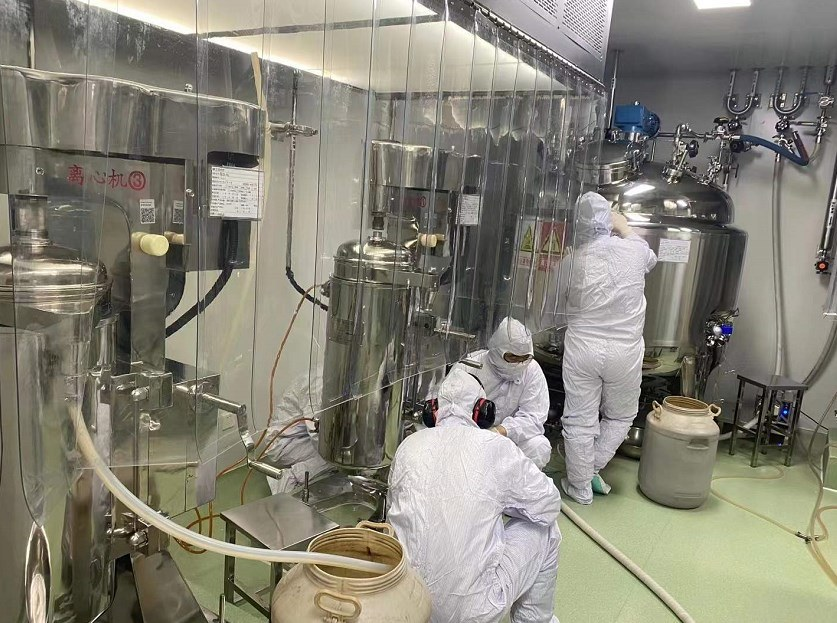

The following picture shows the production workshop of Ferbio.
Other Products
Send Inquiry
Our Advantages
Extensive Manufacturing Experience
With over 20 years of bioreactor production expertise, our factory delivers high-performance systems trusted by global biotech and pharmaceutical companies.
Customized Solutions
We provide tailor-made bioreactor designs to meet diverse application needs, including microbial fermentation, cell culture, and pilot-scale production. ers with a full range of solutions.
Full Range of Products
From lab-scale glass fermenters to industrial stainless steel systems, we offer a complete portfolio to support all stages of bioprocess development.
Global Technical Support
Our experienced engineering and after-sales teams provide responsive service and on-site support worldwide.
