Your Reliable Chinese Vaccine Bioreactor Manufacturer: Bailun（BLBIO）
Bailun Biotechnology is a leading vaccine bioreactor manufacturer in China. Products cover all kinds of bioreactors in laboratory, pilot scale and industrial production, including fermenter, animal cell bioreactor, plant cell bioreactor, single-use bioreactor, liquid dispensing system and disposable reactor, etc. Can produce bioreactor of 0.1L-1000KL volume and technical services, and provide intelligent and personalized comprehensive solutions for bioreactors process. Bailun has a large number of experienced fermentation process, biochemical equipment and chemical technical engineers, many famous experts and scholars as the company’s technical consultants, Bailun forever pursuits to create value for customers, and adhere to customer-centric is the core value of Bailun.
Introduction to Vaccine Bioreactor(GMP)
BLBIO-XSCV/SJV/SJBV(X means volume liters) is a pilot/industry size vaccine bioreactor.It meet cGMP standards, and ability to offer relative verification documents. Easy operation and clean. All liquid contact part is SS316L. Standard model control pH/DO/foam/temperature/agitation/4 gas, four-valve feeding system, tank poshing 0.2um-0.4um, sanitary sampling system, gas auto control by mass flow meter optional. Control panel language EN/CN/RU. Accept customize and design.
SCV type is top magnetic drive. SJV is top mechanical drive. SJBV is bottom mechanical drive.
Vaccine Bioreactor Can Improve Work Efficiency
10 inch color touch screen of vaccine bioreactor displays all measured values and control parameters, usually each bioreactor has 4 peristaltic pumps for acid, alkali, defoamer, medium. Automatic control pH/DO/temperature/agitation/antifoam. Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.
Vaccine bioreactor have more options: Remote control, Mass flow meter, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Glucose detection, Live cell sensor(Biomass), Variable speed pump, Weighting, Printing, 15” color touch screen, Siemens screen, Program open setting, Tank circulation washing itself, 3D design, Fermentation data analysis software etc..
Know More About Vaccine Bioreactor(GMP)
| Parameter | Description |
| Total volume | 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 2KL,5KL,10KL etc. |
| Working volume | 30%~70% |
| Polishing | Electrolytic polishing, precision: 0.2-0.4um. |
| Stirring system | Mechanical drive or Magnetic drive, 3 height adjustable six – blade stirrer Stir speed: 50~1000rpm/50-350rpm |
| Sterilization | On-site sterilization(SIP) by auto control |
| Clean | Clean in place (CIP) by spray ball |
| Aeration flow | Multi-way ventilation. Auto control by mass flow meter, 1vvm |
| Feeding | Automatically feeding by fixed peristaltic pump (standard) Variable speed peristaltic pump(optional) |
| Anti-foam control | Automatically add antifoam by peristaltic pump |
| Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
| PH control | 2.00-12.00±0.05pH, auto-control by adding acid and base, pH sensor (Hamilton/Mettler, Switzerland) |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling valve | Can sterilization separately, manual |
| Harvest | Zero dead zone bottom valve, can sterilization separately, manual |
| Weight system | Mettler-Toledo, Switzerland |
| Pressure | Auto control, BD Germany pressure transmitter or Lambert differential pressure liquid level gauge. |
| Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
| Control parameters | 10in touch screen, Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions |
| Optional configuration | We can customize the parameters of vaccine bioreactor according to customer needs，such as O2/N2/CO2 gas control, Level sensor, OD sensor, Turbidity sensor, ORP sensor, Weight system, Live cell sensor etc. |

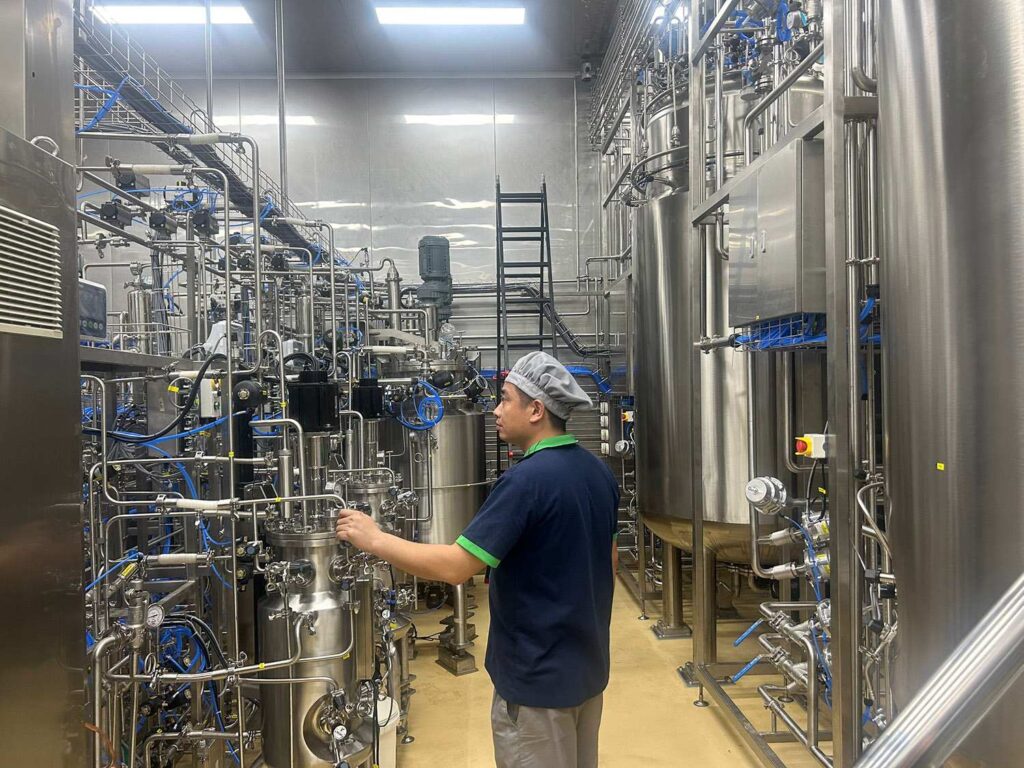

The following picture shows the production workshop of Bailun.
Other Products
Send Inquiry
Our Advantages
Extensive experience and expertise
We have many years of experience in the industry and accumulated a wealthof professional knowledge to provide customers with the best quality products and services.
Diverse product lines
We provide products in the field of bioreactor (fermenter) andcomplete control system to provide customers with a full range of solutions.
Strict quality control.
We have always adhered to strict quality management and technological innovation to ensure that our products are always in the leading positionin the industry.
Customer first service concept.
We always stand on the customer's point of view, starting from the customer's needs, to provide customers with the best solution. No matter what customers need, we will meet their needs with a professional attitude and high-quality products.
